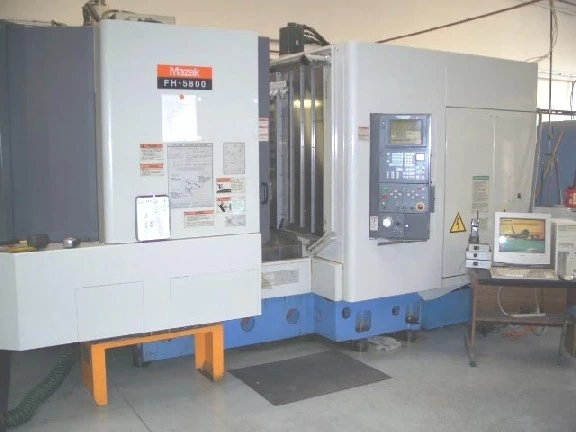

MAZAK FH 5800 4 AXIS

SPECIFICATIONS:
NUMBER OF PALLETS 2
PALLET SIZE 19.68"X 19.68"
AXIS TRAVEL X - AXIS 27.95"
Y - AXIS 24.02"
Z - AXIS 25.98"
MAXIMUM WEIGHT OF WORKPIECE 1100 LBS.
TABLE INDEXING .001 DEGREE
SPINDLE CENTER TO TABLE TOP 1.96" - 25.98"
SPINDLE NOSE TO TABLE CENTER 5.91" - 31.89"
SPINDLE DRIVE MOTOR 30 HP AC
SPINDLE TAPER CAT #40
SPINDLE SPEEDS 15,000 RPM
RAPID TRAVERSE RATE 1968 IPM X,Y,Z
MAXIMUM CUTTING RATE 1968 IPM X,Y,Z
AUTO TOOL CHANGE CAPACITY 40 ATC
MAX. TOOL LENGTH 14.17"
MAX. TOOL DIAMETER 5.740"
MAX. TOOL WEIGHT 26 LBS.
MACHINE WEIGHT 27,400 LBS.
