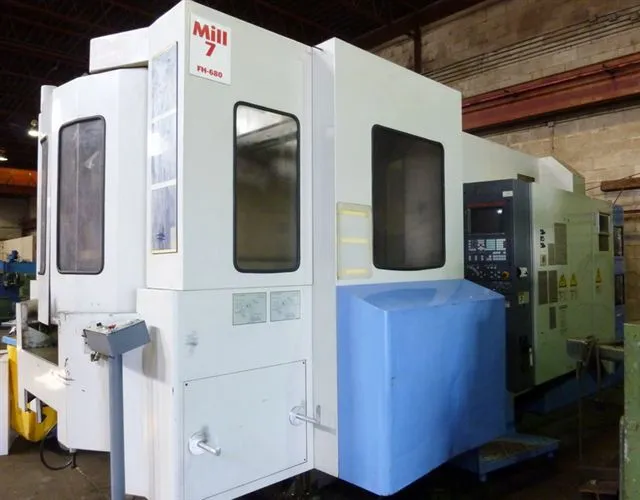

MAZAK FH 680 /4 AXIS
Have one to sell?
ConditionUsed
1 available
THIS FH 680 HAS (2) 24.8" PALLETS, 80 TOOL ATC, COOLANT THRU SPINDLE,, NC ROTARY TABLE WITH FULL 4TH AXIS AND M PLUS CONTROL.
SPECIFICATIONS:
PALLET SIZE(2) 24.8"
X AXIS TRAVEL 41.94"
Y AXIS TRAVEL 31.50"
Z AXIS TRAVEL 32.4"
PALLET TOP TO SPINDLE CENTER 3.93"-35.4"
PALLET CENTER TO SPINDLE NOSE 7.87"-40.35"
PALLET LOAD CAPACITY 3300 LBS
PALLET INDEX .001°
SPINDLE TAPER #50
SPINDLE SPEEDS 35-10,000 RPM (2 SPEED)
RAPID TRAVERSE 1280 IPM
CUTTING FEED RATE 0.04-1260 IPM
TOOL MAGAZINE STORAGE 80 ATC
MAX. TOOL DIAMETER 5.31"/19.68"
MAIN MOTOR 40 HP
DIMENSIONS 134"W X 270"L-R X 132" HT.
EQUIPPED WITH:
MAZATROL M PLUS CNC CONTROLLER
EIA PROGRAMMING
NC ROTARY TABLE W/FULL 4TH AXIS
SYNCHRONIZED TAPPING
HAND CONTROLS
COOLANT THROUGH SPINDLE
TOOL LENGTH MEASUREMENT
CHIP CONVEYOR
EQUIPPED WITH:
MAZATROL M PLUS CNC CONTROLLER
EIA PROGRAMMING
NC ROTARY TABLE W/FULL 4TH AXIS
SYNCHRONIZED TAPPING
HAND CONTROLS
COOLANT THROUGH SPINDLE
TOOL LENGTH MEASUREMENT
CHIP CONVEYOR
INSTALLED 1997
THIS FH 680 HAS (2) 24.8" PALLETS, 80 TOOL ATC, COOLANT THRU SPINDLE,, NC ROTARY TABLE WITH FULL 4TH AXIS AND M PLUS CONTROL.
Imperial
| X-AXIS TRAVEL | 41.94" |
| Y-AXIS TRAVEL | 31.5" |
| Z-AXIS TRAVEL | 32.4" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE DRIVE MOTOR | 40 hp |
| SPINDLE SPEED | 10000 rpm |
| TOOL CAPACITY (ATC) | 80 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 24.8" x 24.8" |
| PALLET SIZE (W) | 24.8" |
| PALLET SIZE (L) | 24.8" |
| PALLET LOAD CAPACITY | 3300 lb |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| CHIP CONVEYOR | Yes |
| Control | CNC (MAZATROL M PLUS) |
| Dimensions | 134" X 270" X 132" |
SPECIFICATIONS:
PALLET SIZE(2) 24.8"
X AXIS TRAVEL 41.94"
Y AXIS TRAVEL 31.50"
Z AXIS TRAVEL 32.4"
PALLET TOP TO SPINDLE CENTER 3.93"-35.4"
PALLET CENTER TO SPINDLE NOSE 7.87"-40.35"
PALLET LOAD CAPACITY 3300 LBS
PALLET INDEX .001°
SPINDLE TAPER #50
SPINDLE SPEEDS 35-10,000 RPM (2 SPEED)
RAPID TRAVERSE 1280 IPM
CUTTING FEED RATE 0.04-1260 IPM
TOOL MAGAZINE STORAGE 80 ATC
MAX. TOOL DIAMETER 5.31"/19.68"
MAIN MOTOR 40 HP
DIMENSIONS 134"W X 270"L-R X 132" HT.
EQUIPPED WITH:
MAZATROL M PLUS CNC CONTROLLER
EIA PROGRAMMING
NC ROTARY TABLE W/FULL 4TH AXIS
SYNCHRONIZED TAPPING
HAND CONTROLS
COOLANT THROUGH SPINDLE
TOOL LENGTH MEASUREMENT
CHIP CONVEYOR
EQUIPPED WITH:
MAZATROL M PLUS CNC CONTROLLER
EIA PROGRAMMING
NC ROTARY TABLE W/FULL 4TH AXIS
SYNCHRONIZED TAPPING
HAND CONTROLS
COOLANT THROUGH SPINDLE
TOOL LENGTH MEASUREMENT
CHIP CONVEYOR
INSTALLED 1997
