MAZAK H-630
Have one to sell?
ConditionUsed
1 available

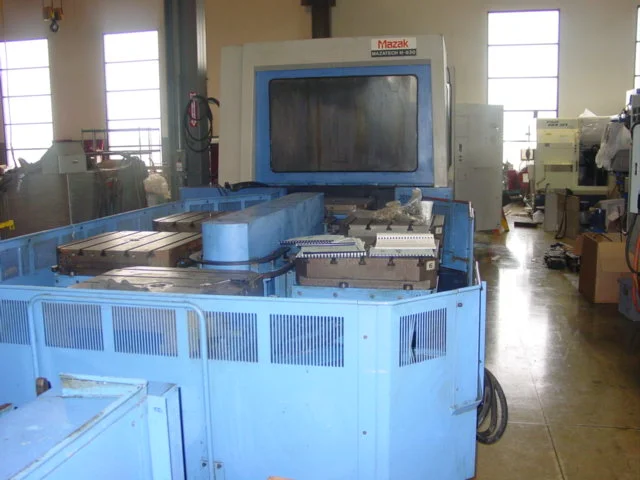

THE H 630 HAS (6) 24.8" PALLETS, PALLET CHANGER, FULL 4TH AXIS, 120 TOOL MAGAZINE, THRU SPINDLE COOLANT AND FANUC CONTROL.
SPECIFICATIONS:
PALLET SIZE 24.8 IN. X 24.8 IN
TABLE LOAD CAPACITY 2640 LBS.
NO. OF PALLETS 6
X AXIS TRAVEL 39.4 IN.
Y AXIS TRAVEL 31.5 IN.
Z AXIS TRAVEL 29.5 IN.
TABLE INDEXING FULL 4TH
DISTANCE FROM SPINDLE CENTER TO TABLE TOP 1.97 IN. - 33.5
DISTANCE FROM SPINDLE NOSE TO TABLE CENTER 7.87 IN. - 37.4 I
RAPID TRAVERSE ( X, Y & Z ) 781 IPM
SPINDLE SPEED RANGE 22-4500 RPM
SPINDLE NOSE ISO # 50
MAX. SPINDLE TORQUE 639 FT.LBS
TOOL MAGAZINE CAPACITY 120
TOOL SHANK CONFIGURATION CAT # 50
TOOL SELECTION METHOD RANDOM SELECTION/SHORTEST PATH
MAX. TOOL LENGTH ( FROM GAUGE LINE ) 15.7 IN.
MAX. TOOL DIAMETER 12 IN.
WITH ADJACENT POCKETS EMPTY 10.2 IN.
MAX. TOOL WEIGHT 59.4 LBS.
MAIN MOTOR ( 30 MIN. RATING ) AC 30 HP
POWER REQUIREMENT 61 KVA
MAXIMUM WORKPIECE SIZE ( DIA. X HGT ) 35.4 IN. X 37.4 IN.
MACHINE WEIGHT 37,400 LBS
FANUC 11ME CONTROL
6-PALLET AUTOMATIC PALLET CHANGER
N/C ROTARY TABLE
THRU SPINDLE COOLANT
DNC INTERFACE
ADDITIONAL MEMORY ( 1050 FEET )
NIAGARA COOLANT
PROBE READY
ALL AVAILABLE MANUALS
THE H 630 HAS (6) 24.8" PALLETS, PALLET CHANGER, FULL 4TH AXIS, 120 TOOL MAGAZINE, THRU SPINDLE COOLANT AND FANUC CONTROL.
Imperial
| X-AXIS TRAVEL | 39.4" |
| Y-AXIS TRAVEL | 31.5" |
| Z-AXIS TRAVEL | 29.5" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE DRIVE MOTOR | 30 hp |
| SPINDLE SPEED | 4500 rpm |
| TOOL CAPACITY (ATC) | 120 |
| NUMBER OF PALLETS | 6 |
| PALLET SIZE | 24.8" x 24.8" |
| PALLET SIZE (W) | 24.8" |
| PALLET SIZE (L) | 24.8" |
| PALLET LOAD CAPACITY | 2640 lb |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| Control | CNC (FANUC 11ME) |
| Weight | 37,400 LBS |
SPECIFICATIONS:
PALLET SIZE 24.8 IN. X 24.8 IN
TABLE LOAD CAPACITY 2640 LBS.
NO. OF PALLETS 6
X AXIS TRAVEL 39.4 IN.
Y AXIS TRAVEL 31.5 IN.
Z AXIS TRAVEL 29.5 IN.
TABLE INDEXING FULL 4TH
DISTANCE FROM SPINDLE CENTER TO TABLE TOP 1.97 IN. - 33.5
DISTANCE FROM SPINDLE NOSE TO TABLE CENTER 7.87 IN. - 37.4 I
RAPID TRAVERSE ( X, Y & Z ) 781 IPM
SPINDLE SPEED RANGE 22-4500 RPM
SPINDLE NOSE ISO # 50
MAX. SPINDLE TORQUE 639 FT.LBS
TOOL MAGAZINE CAPACITY 120
TOOL SHANK CONFIGURATION CAT # 50
TOOL SELECTION METHOD RANDOM SELECTION/SHORTEST PATH
MAX. TOOL LENGTH ( FROM GAUGE LINE ) 15.7 IN.
MAX. TOOL DIAMETER 12 IN.
WITH ADJACENT POCKETS EMPTY 10.2 IN.
MAX. TOOL WEIGHT 59.4 LBS.
MAIN MOTOR ( 30 MIN. RATING ) AC 30 HP
POWER REQUIREMENT 61 KVA
MAXIMUM WORKPIECE SIZE ( DIA. X HGT ) 35.4 IN. X 37.4 IN.
MACHINE WEIGHT 37,400 LBS
FANUC 11ME CONTROL
6-PALLET AUTOMATIC PALLET CHANGER
N/C ROTARY TABLE
THRU SPINDLE COOLANT
DNC INTERFACE
ADDITIONAL MEMORY ( 1050 FEET )
NIAGARA COOLANT
PROBE READY
ALL AVAILABLE MANUALS
