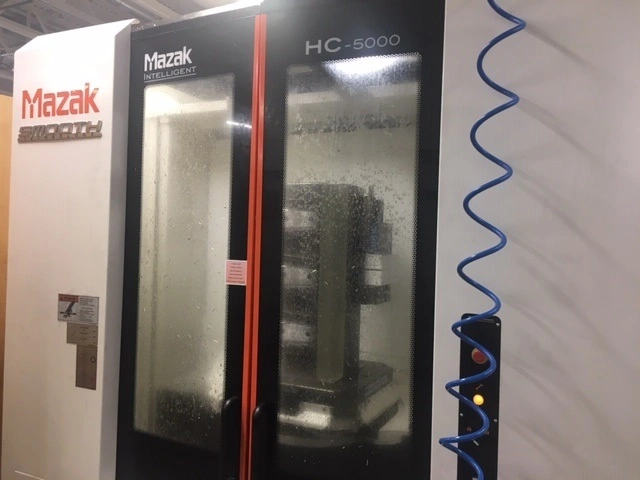

MAZAK HC 5000 /4 AXIS
Have one to sell?
ConditionUsed
1 available
THIS 2018 HC 5000 HAS THE NEW MAZATROL SMOOTH G CONTROL, CAT 40/ 12000 RPM SPINDLE, 84 STATION ATC, 360,000 DEGREE INDEXING, COOLANT THRU SPINDLE, PART & TOOL PROBES.
SPECIFICATIONS:
PALLET SIZE 19.69" X 19.69"
NUMBER OF PALLETS 2
PALLET WEIGHT CAPACITY 1,102 LBS.
PALLET SURFACE TO SPINDLE CENTER 2.76" - 34.25"
PALLET CTR TO SPINDLE GAGE LINE 3.15" - 32.68"
WORKPIECE SIZE DIAMETER X HEIGHT 31.5" X 39.37"
X - AXIS TRAVEL 28.74"
Y - AXIS TRAVEL 28.74"
Z - AXIS TRAVEL 31.5"
B - AXIS TRAVEL 0.0001 DEG. N/C CONTOURING
RAPID TRAVERSE RATES X, Y, Z 2362, 2362, 2362 IPM
RAPID TRAVERSE RATE B AXIS 50 RPM
CUTTING FEED RATE 2362 IPM
SPINDLE SPEED 15,000 RPM HIGH TORQUE
NUMBER OF RANGES 2
SPINDLE TAPER 40 CT BIG PLUS
MAIN MOTOR 25 HP
NUMBER OF TOOLS 84 ATC
MACHINE WEIGHT 30,000 LBS.
MACHINE MANUFACTURED SEPTEMBER 2018
MAZATROL SMOOTH G CONTROL
12,000 RPM CAT-40 SPINDLE
360,000 DEGREE INDEXING
COOLANT THRU SYS 71-PSI
84-TOOL MAGAZINE
LNS MH-250 MICRO-HINGE CHIP CONVEYOR REAR EXIT
2PC LOCATION BORE TAP PALLETS
MANUAL PULSE GENERATOR
MT CONNECT ADAPTOR
NIAGARA SHOWER COOLANT
AUTO POWER ON/OFF WARM-UP
G00 SLOPE CONSTANT
NIAGARA SHOWER COOLANT
AUTO TOOL LENGTH MEASUREMENT
RENISHAW OMP-60
SMOOTH ENGRAVING FUNCTION
