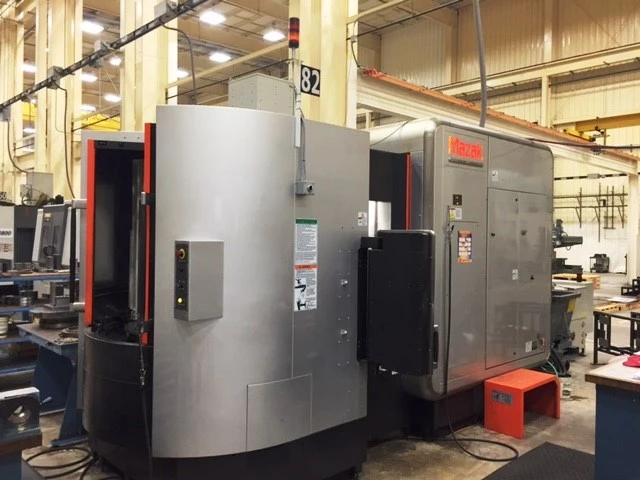

MAZAK HCN 4000-II /FULL 4TH AXIS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAZAK
Model:
HCN 4000-II
Year:
2011
Stock #:
4731
Status:
For Sale

Description

THIS HCN 4000 COMES WITH A FULL 4TH AXIS ROTARY TABLE, MATRIX CONTROL AND (2) 15.75" PALLETS, RENISHAW WORK PROBE AND 6 EXTRA PALLETS.

X-AXIS TRAVEL22.05"560.07 mm
Y-AXIS TRAVEL25.2"640.08 mm
Z-AXIS TRAVEL25.2"640.08 mm
SPINDLE TAPERCAT 40CAT 40
SPINDLE SPEED12,000 RPM12000 rpm
TOOL CAPACITY (ATC)8080
NUMBER OF PALLETS88
PALLET SIZE15.75" x 15.75"15.75" x 15.75"
PALLET SIZE (W)15.75"400.05 mm
PALLET SIZE (L)15.75"400.05 mm
PALLET LOAD CAPACITY882 lb
4 AXIS PALLET TABLE INDEXINGN/C ContouringN/C Contouring
PART PROBEYESYES
TOOL PROBE/AUTO TOOL LENGTH MEASUREYesYes
CHIP CONVEYORYesYes
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)
Weight23,600 LBS23,600 LBS

SPECIFICATIONS:
NUMBER OF AXIS           4
PALLET SIZE              15.75" X 15.75"
PALLET CAPACITY          882 LBS
PALLET INDEXING (B-AXIS) .001 DEG.
X-AXIS TRAVEL            22.05"
Y-AXIS TRAVEL            25.2"
Z-AXIS TRAVEL            25.2"
X-AXIS RAPID FEEDRATE    2362 IPM
Y-AXIS RAPID FEEDRATE    2362 IPM
Z-AXIS RAPID FEEDRATE    2362 IPM
SPINDLE SPEED            12,000 RPM
SPINDLE TAPER            40
MAIN MOTOR               25 HORSEPOWER
TOOL CHANGER CAPACITY    80
MACHINE WEIGHT           23,600 LBS

MAZATROL MATRIX CONTROL
FULL 4TH AXIS ROTARY TABLE
1 GB CAPABILITY
THRU SPINDLE COOLANT OR AIR BLAST
CHIP BLASTER
MIST COLLECTOR
MU SPECIFICATIONS (COOLANT TEMP CONTROLED, SCALE FEEDBACK,
LOW VIBRATION SPINDLE, COLUMN AND BASE COOLING)
(6) EXTRA PALLETS, (8) TOTAL
LOCATION BORE TAP IN PALLETS.
RENISHAW WORK PROBE
CONCEPT CHIP CONVEYOR
ALL AVAILABLE MANUALS
