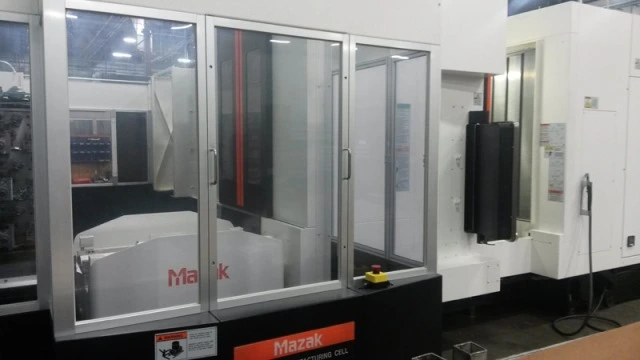

MAZAK HCN 5000-II w/6-STATION FMS SYSTEM
Have one to sell?
ConditionUsed
1 available
THIS 2013 HCN 5000 INCLUDES A 6 STATION FMS, 160 TOOL MAGAZINE, THRU SPINDLE COOLANT, 18000 RPM SPINDLE AND MATRIX NEXUS CONTROL.
SPECIFICATIONS:
PALLET SIZE 19.69 X 19.69
X-AXIS TRAVEL 28.74
Y-AXIS TRAVEL 28.74
Z-AXIS TRAVEL 29.13
DIS FROM SPINDLE CENTER TO TOP OF PALLET 3.94-32.68
DIS FROM SPINDLE NOSE TO PALLET CENTER 2.76-31.89
MAXIMUM TABLE LOAD 1543.2
MAXIMUM WORKPIECE HEIGHT 39.37
MAXIMUM WORKPIECE DIAMETER 31.50
SPINDLE NOSE CAT 40
SPINDLE RPM 35-18,000
SPINDLE HORSEPOWER (30 MIN/CONT) 40 HP/33.5 HP
MAGAZINE CAPACITY 160
CHIP-TO-CHIP TIME (APPROX.) 2.7S / 3.2S
MAXIMUM TOOL DIAMETER 3.74
MAX.TOOL DIA.W/ADJACENT POCKETS EMPTY 5.91
MAXIMUM TOOL LENGTH / WEIGHT 16.54 / 26 LBS
RAPID TRAVERSE RATE 2362.2
MAXIMUM PROGRAMMABLE FEEDRATE 2362.2
MACHINE WEIGHT 24,250 LBS
MAZATROL MATRIX NEXUS CONTROL
12.1 COLOR LCD
EIA/ISO INPUT FUNCTION
ADDITIONAL EIA/ISO FUNCTIONS
USB I/F (2-PORT)
CARDBUS I/F (2-SLOT)
LAN PORT
SYNCHRONIZED TAPPING
GOO SLOPE CONSTANT
MAZACC-2D SOFTWARE (SHAPE COMPENSATION)
ADD. WORKPIECE COORDINATE SYS 300-PAIRS
INCH/METRIC CONVERSION
TBR & MMS IN EIA/ISO PROGRAM MACRO
SPINDLE MULTI-POINT ORENT (M-CODE/1 DEG)
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
ABSOLUTE POSITIONING SYSTEM
PREP FOR VISUAL TOOL ID/DATA MANAGEMENT
THRU MILL-SPINDLE COOLANT 113 PSI WITH PREP FOR 1000 PSI
NIAGARA COOLANT
PREP FOR MMS-B OPTICAL TYPE OMP60
PMC PREP B
KEN OKUYAMA DESIGN
RELOCATION DEVICE
WINDOWS XP OP SYSTEM
MT CONNECT PREP
160 TOOL CHAIN MAG (CAT40)
18K RPM SPINDLE SPEED
NC POSITIONING TABLE 0.001 DEG N/A CONTROURING
SIGNAL TOWER
CONSEP 2000 CHIP CONVEYOR REAR DUAL BELT MAYFRAN
MAZAK SUPER FLOW V8A VARIABLE HIGH PRESSURE COOLANT
6-STATION FMS SYSTEM
THIS 2013 HCN 5000 INCLUDES A 6 STATION FMS, 160 TOOL MAGAZINE, THRU SPINDLE COOLANT, 18000 RPM SPINDLE AND MATRIX NEXUS CONTROL.
Imperial
| X-AXIS TRAVEL | 28.74" |
| Y-AXIS TRAVEL | 28.74" |
| Z-AXIS TRAVEL | 29.13" |
| SPINDLE TAPER | CAT 40 |
| SPINDLE DRIVE MOTOR | 40 hp |
| SPINDLE SPEED | 18000 rpm |
| TOOL CAPACITY (ATC) | 160 |
| PALLET SIZE | 19.69" x 19.69" |
| PALLET SIZE (W) | 19.69" |
| PALLET SIZE (L) | 19.69" |
| PALLET LOAD CAPACITY | 1543.2 lb |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 213 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Weight | 24,250 LBS |
SPECIFICATIONS:
PALLET SIZE 19.69 X 19.69
X-AXIS TRAVEL 28.74
Y-AXIS TRAVEL 28.74
Z-AXIS TRAVEL 29.13
DIS FROM SPINDLE CENTER TO TOP OF PALLET 3.94-32.68
DIS FROM SPINDLE NOSE TO PALLET CENTER 2.76-31.89
MAXIMUM TABLE LOAD 1543.2
MAXIMUM WORKPIECE HEIGHT 39.37
MAXIMUM WORKPIECE DIAMETER 31.50
SPINDLE NOSE CAT 40
SPINDLE RPM 35-18,000
SPINDLE HORSEPOWER (30 MIN/CONT) 40 HP/33.5 HP
MAGAZINE CAPACITY 160
CHIP-TO-CHIP TIME (APPROX.) 2.7S / 3.2S
MAXIMUM TOOL DIAMETER 3.74
MAX.TOOL DIA.W/ADJACENT POCKETS EMPTY 5.91
MAXIMUM TOOL LENGTH / WEIGHT 16.54 / 26 LBS
RAPID TRAVERSE RATE 2362.2
MAXIMUM PROGRAMMABLE FEEDRATE 2362.2
MACHINE WEIGHT 24,250 LBS
MAZATROL MATRIX NEXUS CONTROL
12.1 COLOR LCD
EIA/ISO INPUT FUNCTION
ADDITIONAL EIA/ISO FUNCTIONS
USB I/F (2-PORT)
CARDBUS I/F (2-SLOT)
LAN PORT
SYNCHRONIZED TAPPING
GOO SLOPE CONSTANT
MAZACC-2D SOFTWARE (SHAPE COMPENSATION)
ADD. WORKPIECE COORDINATE SYS 300-PAIRS
INCH/METRIC CONVERSION
TBR & MMS IN EIA/ISO PROGRAM MACRO
SPINDLE MULTI-POINT ORENT (M-CODE/1 DEG)
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
ABSOLUTE POSITIONING SYSTEM
PREP FOR VISUAL TOOL ID/DATA MANAGEMENT
THRU MILL-SPINDLE COOLANT 113 PSI WITH PREP FOR 1000 PSI
NIAGARA COOLANT
PREP FOR MMS-B OPTICAL TYPE OMP60
PMC PREP B
KEN OKUYAMA DESIGN
RELOCATION DEVICE
WINDOWS XP OP SYSTEM
MT CONNECT PREP
160 TOOL CHAIN MAG (CAT40)
18K RPM SPINDLE SPEED
NC POSITIONING TABLE 0.001 DEG N/A CONTROURING
SIGNAL TOWER
CONSEP 2000 CHIP CONVEYOR REAR DUAL BELT MAYFRAN
MAZAK SUPER FLOW V8A VARIABLE HIGH PRESSURE COOLANT
6-STATION FMS SYSTEM
