MAZAK HCN 5000-II W/WITH 12-STATION STACKER PALLETEH
Have one to sell?
ConditionUsed
1 available

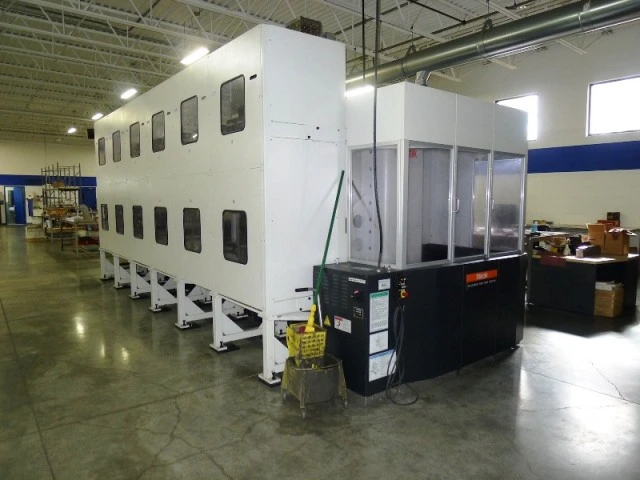

THIS HCN 5000 COMES WITH A 12 STATION STACKER FMS WITH MATRIX CONTROL, FULL 4TH AXIS, 120 TOOL CHAIN MAGAZINE, MP 10 PROBE AND ATLM AND THRU SPINDLE COOLANT.
SPECIFICATIONS:
PALLET SIZE 19.69 X 19.69
X-AXIS TRAVEL 28.74
Y-AXIS TRAVEL 28.74
Z-AXIS TRAVEL 29.13
DIS FROM SPINDLE CENTER TO TOP OF PALLET 3.94-32.68
DIS FROM SPINDLE NOSE TO PALLET CENTER 2.76-31.89
MAXIMUM TABLE LOAD 1543.2
MAXIMUM WORKPIECE HEIGHT 39.37
MAXIMUM WORKPIECE DIAMETER 31.50
SPINDLE NOSE CAT 40
SPINDLE RPM 35-18,000
SPINDLE HORSEPOWER (30 MIN/CONT) 40 HP/33.5 HP
MAGAZINE CAPACITY 120
CHIP-TO-CHIP TIME (APPROX.) 2.7S / 3.2S
MAXIMUM TOOL DIAMETER 3.74
MAX.TOOL DIA.W/ADJACENT POCKETS EMPTY 5.91
MAXIMUM TOOL LENGTH / WEIGHT 16.54 / 26 LBS
RAPID TRAVERSE RATE 2362.2
MAXIMUM PROGRAMMABLE FEEDRATE 2362.2
MACHINE WEIGHT 24,250 LBS
MAZATROL MATRIX
EIA/ISO
USER MACRO
VARIABLES 600 PAIRS
MAZAK TAPPING BORING TORNADO
(EIA/ISO)
INVERSE TIME FEED
G37.AUTOMATIC TOOL LENGTH MEASUREMENT
SEQUENCE NUMBER COMPARISON STOP FUNCTION
SYNCRONIZED TAPPING
GOO SLOPE CONSTANT
MAZACC-2D SOFTWARE (SHAPE COMP)
SHAPE COMPENSATION FOR ROTARY AXIS
CYLINDRICAL INTERPOLATION
ADDITIONAL WORKPIECE COORDINATE SYSTEM 300 PAIRS
THREAD CUTTING FUNCTION
INCH/METRIC CONVERSION
Y AXIS TRAVEL 28.74
AUTOMATIC TOOL LENGTH MEARSUREMENT AND BREAK DETECTION
120 TOOL CHAIN MAGAZINE
PREP FOR VISUAL TOOL ID/DATA MANAGEMENT (EUCHNER)
CHIP CONVEYOR REAR (WILL VERIFY TYPE OF CC)
STD.THRU SPINDLE COOLANT W/HIGH PRESSURE PUMP
NIAGARA COOLANT
COOLERS FOR BALL SCREWS X,Y,Z, AXIS'S
PREP FOR MMS B OPTICAL TYPE PROBE TYPE MP 10
SPINDLE CHILLER UNIT
MAIN SPINDLE MOTOR 40 HP
SPINDLE SPEED 13,000 RPM (WILL VERIFY)
NC POSITIONING TABLE 0.001 (N/A CNTRG)
2 PALLET CHANGER
2 PALLET CHANGETO LOCATION BORE TAP PALLETS
OPERATOR DOOR INTERLOCK WITH LOCK SWITCH
MULTI TAP TRANSFORMER FOR N. AMERICAN MARKET
WINDOWS OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
PMC W/CELL CONTROLLER (C/C) APPLICATION
PALLET LOADER ROBOT
END RAIL MODULE 2 LEVEL
LOADING STATION AND 4 STOCKER (2 LEVEL)
END RAIL MODULE (2 LEVEL)
SAFETY FENCE W/CE MARKING
ALL AVAILABLE MANUALS
