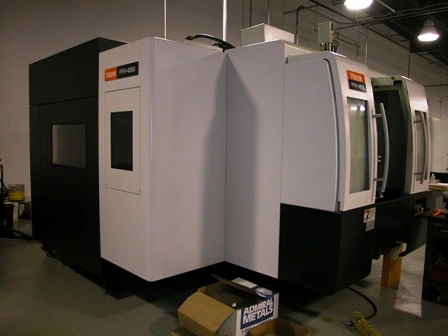

MAZAK PFH 4800
Have one to sell?
ConditionUsed
1 available
THIS PFH 4800 HAS A FUSION 640 CONTROL, CAT 40/ 15000 RPM SPINDLE WITH 80 TOOL ATC, 1000 PSI COOLANT THRU SPINDLE AND RENISHAW WORK AND TOOL PROBES.
SPECIFICATIONS:
PALLET SIZE 15.75" X 15.75"
NUMBER OF PALLETS 2
TABLE INDEXING 1 DEG
X-AXIS TRAVEL 22.05"
Y-AXIS TRAVEL 24.8"
Z-AXIS TRAVEL 23.62"
DIST. FROM SPINDLE CENTER TO TABLE TOP 3.15" - 28"
TABLE LOAD CAPACITY 880 LBS
SPINDLE NOSE CAT 40
SPINDLE SPEED IN RPM'S TO 15000
SPINDLE MOTOR (30 MIN / CONT) 40/30 HP
RAPID TRAVERSE 2,362 IPM
TOOL CHANGE TIME (T-T / C-C) 1.5 / 2.2 Seconds
PALLET LOAD CAPACITY 880 lbs.
TOOL MAGAZINE CAPACITY 80 ATC
MAX TOOL DIAMETER 3.74"
MAX TOOL LENGTH 12.59"
MAX TOOL WEIGHT 26.4 lbs.
MACHINE DIMENSIONS (L x W x H) 105.5" x 163.8" x 103.8"
MACHINE WEIGHT 20,723 lbs.
MAZATROL FUSION 640
10.4" COLOR LCD
15,000 RPM SPINDLE
EIA/ISO INPUT FUNCTION
MULTI-TAP TRANSFORMER
HI PRESSURE PREP
1000 PSI COOLANT THRU SPINDLE
NIAGRA FLOOD COOLANT
SUPER FLOW 1 BAG
AUTOMATIC TOOL LENGTH MEASUREMENT
WORK MEASURING TOOL PROBE MP 700 (NEW)
80 ATC
1 DEGREE
AUTO POWER OFF
SIGNAL TOWER
MAYFRAN CONCEP 2000 CHIP CONVEYOR
