MAZAK PFH 4800 W/PALLETCH/ 2 MACHINE SYSTEM

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAZAK
Model:
PFH 4800
Year:
2005
Stock #:
4701
Status:
For Sale

Description

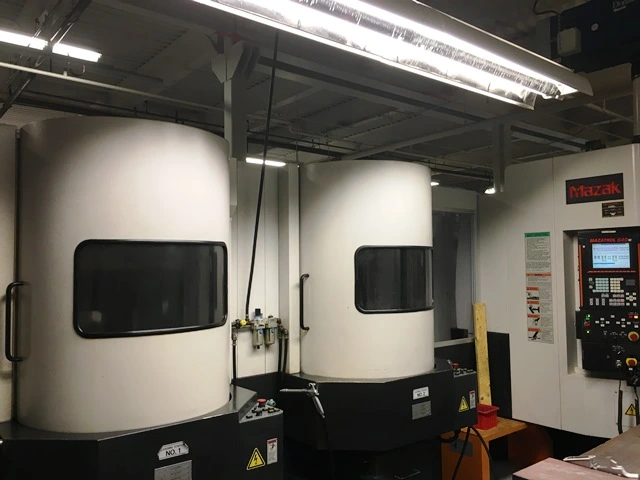

THE SYSTEM INCLUDES 2-PFH-4800’S WITH HI-RISE SET-UP. THE PALLETECH PORTION HAS 48-STOCKERS AND 2-LOAD & UNLOAD STATIONS.

X-AXIS TRAVEL22.05"560.07 mm
Y-AXIS TRAVEL24.58"624.33 mm
Z-AXIS TRAVEL23.62"599.95 mm
SPINDLE TAPERCAT 40CAT 40
SPINDLE DRIVE MOTOR40 hp
SPINDLE SPEED15,000 RPM15000 rpm
TOOL CAPACITY (ATC)160160
NUMBER OF PALLETS4848
PALLET SIZE15.75" x 15.75"15.75" x 15.75"
PALLET SIZE (W)15.75"400.05 mm
PALLET SIZE (L)15.75"400.05 mm
PALLET LOAD CAPACITY880 lb
4 AXIS PALLET TABLE INDEXING1 Degree Index1 Degree Index
PART PROBEYESYES
TOOL PROBE/AUTO TOOL LENGTH MEASUREYesYes
PALLETECH SYSTEM NUMBER OF PALLETS4848
CHIP CONVEYORYesYes
ControlCNC (MAZATROL FUSION 640)CNC (MAZATROL FUSION 640)

SPECIFICATIONS:
PALLET SIZE 15.7” X 15.7”
PALLET INDEXING 0.001 DEGREE 4TH AXIS CONTOURING
X AXIS TRAVELS 22.05”
Y AXIS TRAVELS 24.8”
Z AXIS TRAVELS 23.62”
DISTANCE FROM SPINDLE
TO TOP OF PALLET 3.15”–28”
DISTANCE FROM SPINDLE
NOSE TO PALLET CENTER 2.75”–26.37”
MAX.TABLE LOAD 880 LBS
MAX. WORKPIECE HEIGHT 27.95”
MAX. WORPIECE DIAMETER 24.8”
SPINDLE NOSE CAT 40
SPINDLE SPEED INCREMENTS 1 RPM
SPINDLE RANGES 2
SPINDLE SPEEDS 0-­-15,000
RPM SPINDLE HORSEPOWER 30/40 HP
SPINDLE TORQUE 123 FT./LBS
FULL HORSEPOWER @1,500 RPM
TOOL CAPACITY 240 TOOLS
CHIP-­-TO-­-CHIP TIME 2.2 SECONDS
MAX. TOOL DIAMETER 3.74”
MAX. TOOL LENGTH 14.17”
MAX. TOOL WEIGHT 26.5 LBS
RAPID TRAVERSE 2,362 IPM
MAX. PROGRAMMABLE FEEDRATE 2,362 IPM
FLOOR SPACE REQUIRED 95.7” X 211.4”
MACHINE HEIGHT 110”
TOTAL POWER REQUIRED 70 KVA
MACHINE WEIGHT 22,040LBS.

THE SYSTEM INCLUDES 2-PFH-4800’S WITH HI-RISE SET-UP. THE PALLETECH PORTION HAS 48-STOCKERS AND 2-LOAD & UNLOAD STATIONS. THE MACHINES WENT THROUGH A MAJOR OVERHAUL LAST YEAR AND ARE IN EXCELLENT CONDITION. SYSTEM IS AVAILABLE FOR IMMEDIATE SHIPMENT.

•PFH-4800 – MCH#-1
•FUSION 640M CONTROL
•YEAR OF MANUFACTURE AUGUST 2005
•40-HORSEPOWER 15,000 RPM SPINDLE
•160-TOOL MAGAZINE
•NIAGARA COOLANT
•FLOOD COOLANT
•COOLANT THROUGH THE SPINDLE
•CONCEPT 2000 REAR CHIP CONVEYOR
•RENISHAW MP-700 PROBE W-INSPECTION PLUS
•1-DEGREE PALLET INDEX
•REMOTE MANUAL PULSE GENERATOR
•CNC PERFORMANCE PACKAGE
•MULTI-TAP TRANSFORMER

MACHINE SPECIFICATION
•PFH-4800 – MCH#-2
•FUSION 640M CONTROL
•YEAR OF MANUFACTURE AUGUST 2005
•40-HORSEPOWER 15,000 RPM SPINDLE
•160-TOOL MAGAZINE
•NIAGARA COOLANT
•FLOOD COOLANT
•COOLANT THROUGH THE SPINDLE
•CONCEPT 2000 REAR CHIP CONVEYOR
•RENISHAW MP-700 PROBE W-INSPECTION PLUS
•1-DEGREE PALLET INDEX
•CNC PERFORMANCE PACKAGE
•MULTI-TAP TRANSFORMER
