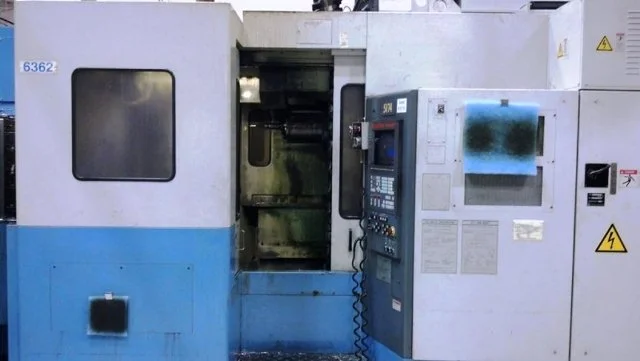

MAZAK ULTRA 550 W/10 PALLET

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAZAK
Model:
ULTRA 550
Year:
1995
Stock #:
4220
Status:
For Sale
Serial #:
119263

Description

THIS ULTRA 550 COMES WITH (10) 19.69" PALLETS, 160 ATC, 1 DEGREE INDEXING, INSPECTION PLUS EIA/ ISO MEASURING SYSTEM AND 7000 RPM GEARED HEAD SPINDLE.

X-AXIS TRAVEL28.35"720.09 mm
Y-AXIS TRAVEL25.59"649.99 mm
Z-AXIS TRAVEL19.69"500.13 mm
SPINDLE TAPERCAT 50CAT 50
SPINDLE DRIVE MOTOR30 hp
SPINDLE SPEED7,000 RPM7000 rpm
TOOL CAPACITY (ATC)160160
NUMBER OF PALLETS1010
PALLET SIZE19.69" x 19.69"19.69" x 19.69"
PALLET SIZE (W)19.69"500.13 mm
PALLET SIZE (L)19.69"500.13 mm
4 AXIS PALLET TABLE INDEXING1 Degree Index1 Degree Index
PART PROBEYESYES
TOOL PROBE/AUTO TOOL LENGTH MEASUREYesYes
CHIP CONVEYORYesYes
ControlCNC (MAZATROL M-PLUS)CNC (MAZATROL M-PLUS)

SPECIFICATIONS:
X AXIS TRAVEL                28.35"
Y AXIS TRAVEL                25.59"
Z AXIS TRAVEL                19.69"
PALLET ROTATION              ONE DEGREE
NO. OF PALLETS               10 PALLETS
PALLET SIZE                  19.69"
SPINDLE TAPER                CAT 50
SPINDLE SPEEDS               7,000 RPM GEARED HEAD
ATC CONFIGURATION            160ATC
RAPIDS                       1000 IPM
MOTOR HP                     30 HP

M-PLUS CONTROL
BARNES FILTRATION
COOLANT THRU SPINDLE
MONITORING SYSTEM B
INSPECTION PLUS EIA/ISO MEASURING SYSTEM
3281 FT ADDITIONAL MEMORY
TOOLING
7 ADDITIONAL PALLETS
BARNES CHIP CONVEYOR
ALL AVAIALBLE MANUALS
