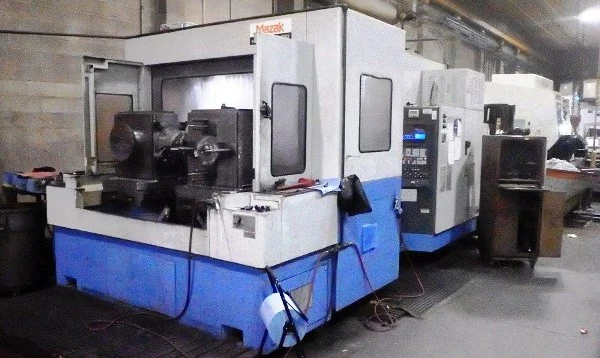

MAZAK ULTRA 650 W/FULL 4 AXIS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAZAK
Model:
ULTRA 650
Year:
1999
Stock #:
4854
Status:
For Sale
Serial #:
137734

Description

THIS ULTRA 650 HAS A CAT 50/ 7000 RPM SPINDLE, FUSION 640M CONTROL, NC ROTARY TABLE - 360,000 POSITIONS, PROBE, COOLANT THRU SPINDLE AND 80 TOOL CHAIN MAGAZINE.

X-AXIS TRAVEL40"1,016 mm
Y-AXIS TRAVEL31.5"800.1 mm
Z-AXIS TRAVEL31"787.4 mm
SPINDLE TAPERCAT 50CAT 50
SPINDLE DRIVE MOTOR35 hp
SPINDLE SPEED7,000 RPM7000 rpm
TOOL CAPACITY (ATC)8080
NUMBER OF PALLETS22
PALLET SIZE24.75" x 24.75"24.75" x 24.75"
PALLET SIZE (W)24.75"628.65 mm
PALLET SIZE (L)24.75"628.65 mm
4 AXIS PALLET TABLE INDEXINGN/C ContouringN/C Contouring
PART PROBEYESYES
TOOL PROBE/AUTO TOOL LENGTH MEASUREYesYes
CHIP CONVEYORYesYes
ControlCNC (MAZATROL FUSION 640M)CNC (MAZATROL FUSION 640M)
Weight39,700 LBS39,700 LBS

SPECIFICATIONS:
PALLET SIZE 24.75" X 24.75"
MAX PALLET LOAD 3,000 LBS
PALLET INDEXING .001 DEG
X AXIS TRAVELS 40"
Y AXIS TRAVELS 31.5"
Z AXIS TRAVELS 31"
SPINDLE TAPER CAT 50
SPINDLE SPEED 7,000 RPM
SPINDLE MOTOR 35 HP
RAPID TRAVERSE (X,Y/Z) 1000/787 IPM
TOOL STORAGE 80 ATC
MACHINE WEIGHT 39,700 LBS

MAZATROL FUSION 640M CNC CONTROL
80 TOOL CHAIN MAGAGAZINE
NC ROTARY TABLE - 360,000 POSITIONS
ADDITIONAL EIA/ISO FUNCTIONS
ADDITIONAL MEMORY - 1000M
PMC PREPARATION
COOLANT THRU SPINDLE
CHIP CONVEYOR
ALL AVAILABLE MANUALS
