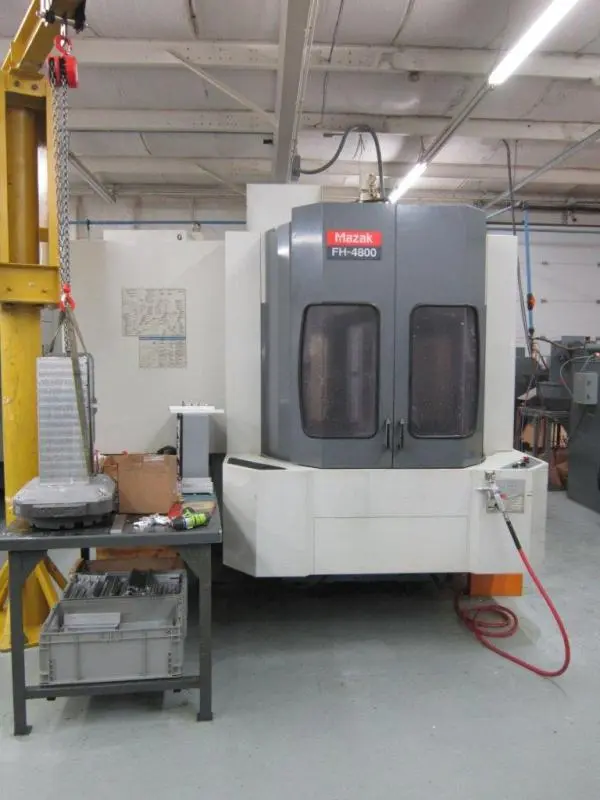

MAZAK FH 4800
Have one to sell?
ConditionUsed
1 available
THIS FH 4800 HAS (2) 15.7" PALLETS, CAT 40/ 25000 RPM SPINDLE WITH AN 80 STATION ATC AND 1000 PSI COOLANT THRU.
SPECIFICATIONS:
PALLETSIZE / NUMBER OF PALLETS 15.7"X 15.7" / 2
TABLEINDEXING 1DEG.
TABLELOAD CAPACITY 880LBS.
X-AXISTRAVEL 22.05
Y-AXISTRAVEL 22.05"
SPINDLENOSE CAT# 40
SPINDLESPEED 25,000 RPM
SPINDLEMOTOR 10 MIN/30 MIN/CONT. 40HP/20 HP/15 HP
SPINDLETORQUE 195FT./LBS.
SPINDLE CENTER TO TABLE TOP 1.97" - 25.98"
TOOLMAGAZINE CAPACITY 80POSITION ATC
MAX.TOOL DIA./LENGTH/WEIGHT 5.91"/14.17"/26.5LBS.
RAPIDTRAVERSE RATES 1968IPM
MACHINEDIMENSIONS 164"X106"X104"
MACHINEWEIGHT 20,723LBS.
MAZATROL FUSION 640M
TOOL LIFE MONITORING
TOOL BREAKAGE DETECTION
AUTO TOOL LENGTH MEASURE
RIGID TAPPING
AIR THROUGH SPINDLE
NIAGARA COOLANT
FLOOD COOLANT
COOLANT THRU SPINDLE 1,000 PSI
AUTOPOWER OFF
80 POSITION ATC
CONCEP 2000 CHIP CONVEYOR
EIA/ ISO INPUT FUNCTION
ADAPTIVE FEEDRATE CONTROL
SPINDLE CHILLER UNIT
USER MACRO
SPIRAL INTERPOLATION
