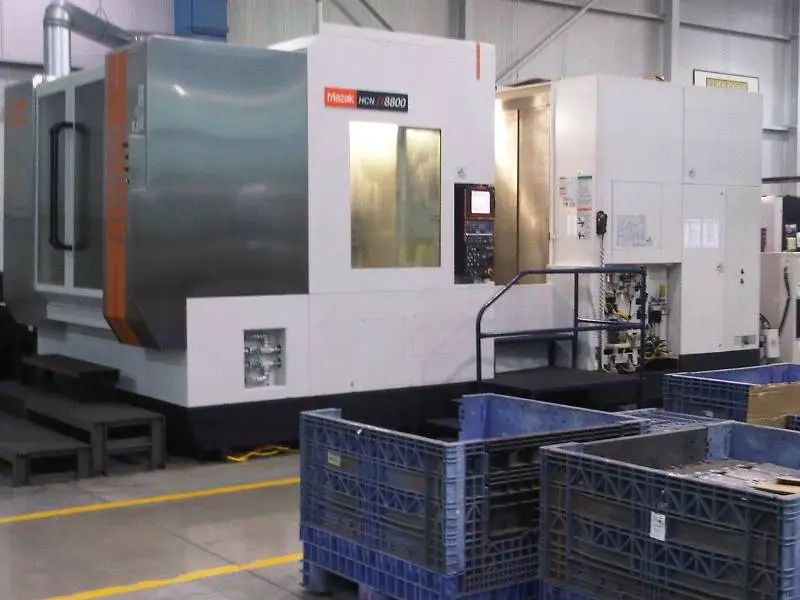

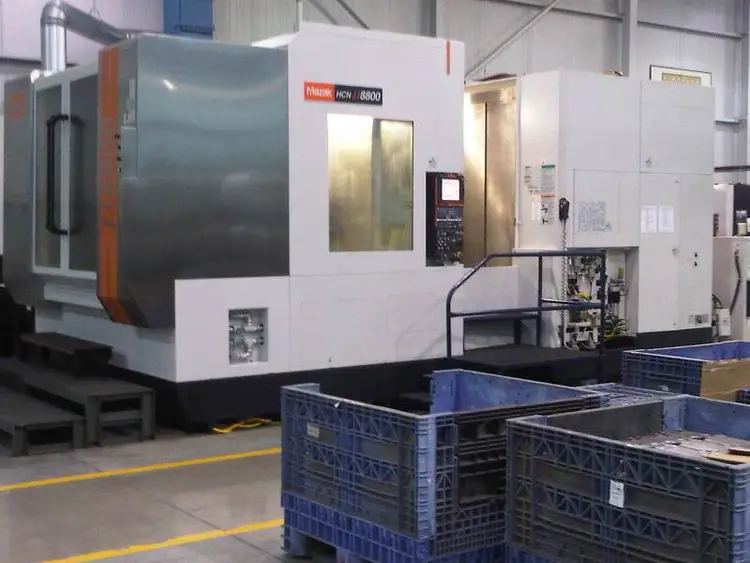

MAZAK HCN u8800-II /ULTRA HIGH PRECISION
Have one to sell?
ConditionUsed
1 available
THIS HCN u8800 COMES WITH THE ULTRA HIGH PRECISION PKG, 120 TOOL CHAIN MAGAZINE, 1000 PSI COOLANT THRU, NC ROTARY TABLE AND RENISHAW TRS2 SYSTEM.
SPECIFICATIONS:
PALLET SIZE 31.5" X 31.5"
AXIS TRAVEL X - AXIS 55.12"
Y - AXIS 47.2"
Z - AXIS 52.17"
TABLE INDEXING .001 (360,000 POSITIONS)
SPINDLE NOSE TO PALLET CENTER 3.94" - 56.10"
SPINDLE DRIVE MOTOR 50/40 HP AC
SPINDLE TAPER CAT #50 TAPER
SPINDLE SPEEDS 10,000 RPM
MAX WORKPIECE 57.09" X 57.09"
PALLET LOAD CAPACITY 4,850 LBS
NUMBER OF RANGES 4
RAPID TRAVERSE RATE 2362 IPM X,Y,Z
AXIS ACCELL- DECELL .59
PALLET CHANGE TIME 1.3 SECONDS
AUTO TOOL CHANGE CAPACITY 120 ATC
MACHINE DIMS 152".8" X 321".6" X 146" HIGH
MACHINE WEIGHT 66,138 LBS
MAZATROL MATRIX
ULTRA HIGH PRECISION PACKAGE
120 TOOL CHAIN MAGAZINE
MAZAK SUPER FLOW I
(1000PSI/ 6.5 GPM)SINGLE BAG FIL
NC ROTARY TABLE(360,000 POSITIONS)
AUTO PECKING CYCLE WITH LOAD DETECTION
OPTIMIZER (2 CD) TECHNICAL LIBRARY
8 TSR-2 1
RENISHAW TRS2 SYSTEM
RENISHAW NC TOOL SETTING SOFTWARE,
TRS-2 MACRO
RENISHAW SUPPLIED TRS-2 MACRO
BROKEN TOOL MACRO ONLY
MAYFRAN CONSEP 2000 CONVEYOR REAR EXIT
THIS HCN u8800 COMES WITH THE ULTRA HIGH PRECISION PKG, 120 TOOL CHAIN MAGAZINE, 1000 PSI COOLANT THRU, NC ROTARY TABLE AND RENISHAW TRS2 SYSTEM.
Imperial
| X-AXIS TRAVEL | 55.12" |
| Y-AXIS TRAVEL | 47.2" |
| Z-AXIS TRAVEL | 52.17" |
| SPINDLE TAPER | CAT 50 |
| SPINDLE DRIVE MOTOR | 50 hp |
| SPINDLE SPEED | 10000 rpm |
| TOOL CAPACITY (ATC) | 120 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 31.5" x 31.5" |
| PALLET SIZE (W) | 31.5" |
| PALLET SIZE (L) | 31.5" |
| PALLET LOAD CAPACITY | 4850 lb |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 1000 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC (MAZATROL MATRIX) |
| Dimensions | 152".8" X 321".6" X 146" |
| Weight | 66,138 LBS |
SPECIFICATIONS:
PALLET SIZE 31.5" X 31.5"
AXIS TRAVEL X - AXIS 55.12"
Y - AXIS 47.2"
Z - AXIS 52.17"
TABLE INDEXING .001 (360,000 POSITIONS)
SPINDLE NOSE TO PALLET CENTER 3.94" - 56.10"
SPINDLE DRIVE MOTOR 50/40 HP AC
SPINDLE TAPER CAT #50 TAPER
SPINDLE SPEEDS 10,000 RPM
MAX WORKPIECE 57.09" X 57.09"
PALLET LOAD CAPACITY 4,850 LBS
NUMBER OF RANGES 4
RAPID TRAVERSE RATE 2362 IPM X,Y,Z
AXIS ACCELL- DECELL .59
PALLET CHANGE TIME 1.3 SECONDS
AUTO TOOL CHANGE CAPACITY 120 ATC
MACHINE DIMS 152".8" X 321".6" X 146" HIGH
MACHINE WEIGHT 66,138 LBS
MAZATROL MATRIX
ULTRA HIGH PRECISION PACKAGE
120 TOOL CHAIN MAGAZINE
MAZAK SUPER FLOW I
(1000PSI/ 6.5 GPM)SINGLE BAG FIL
NC ROTARY TABLE(360,000 POSITIONS)
AUTO PECKING CYCLE WITH LOAD DETECTION
OPTIMIZER (2 CD) TECHNICAL LIBRARY
8 TSR-2 1
RENISHAW TRS2 SYSTEM
RENISHAW NC TOOL SETTING SOFTWARE,
TRS-2 MACRO
RENISHAW SUPPLIED TRS-2 MACRO
BROKEN TOOL MACRO ONLY
MAYFRAN CONSEP 2000 CONVEYOR REAR EXIT
