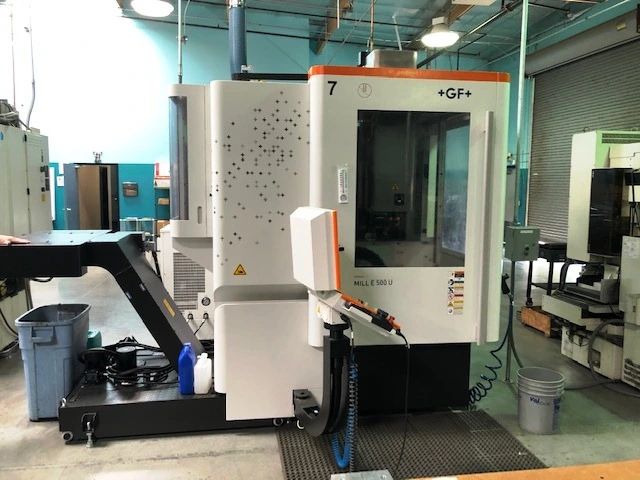

MIKRON E 500U/ 5 AXIS VERTICAL MACHINING CENTER

SPECIFICATIONS:
TRAVEL DISTANCE X-AXIS     19.7 IN
TRAVEL DISTANCE Y-AXIS     17.7 IN
TRAVEL DISTANCE Z-AXIS     15.7 IN
TRAVEL DISTANCE B-AXIS     -65°/+120°
TRAVEL DISTANCE C-AXIS     N X 360°
RAPID TRAVERSE X-AXIS      1181 IN/MIN
RAPID TRAVERSE Y-AXIS      1181 IN/MIN
RAPID TRAVERSE Z-AXIS      1181 IN/MIN
RAPID TRAVERSE B-AXIS      (3+2 AXIS) 17 RPM
RAPID TRAVERSE C-AXIS      (3+2 AXIS) 28 RPM
RAPID TRAVERSE B-AXIS      (5 AXIS) 32 RPM
RAPID TRAVERSE C-AXIS      (5 AXIS) 112 RPM
TABLE SIZE                 12.6/13.8/15.7 IN²
MAX LOAD                   661.4 LBS
NUMBER OF PALLETS          (OPTION)7/10 N/A
SPEED                      12,000 RPM
POWER                      26.8/48.3 HP
TORQUE                     64.9/88.5 FT-LBS
SHANKISO                   40/CAT
CHANGER                    CAPACITY 30 TOOL ATC
LENGTH                     103.5 IN
HEIGHT                     123.2 IN
WIDTH                      133.8 IN
