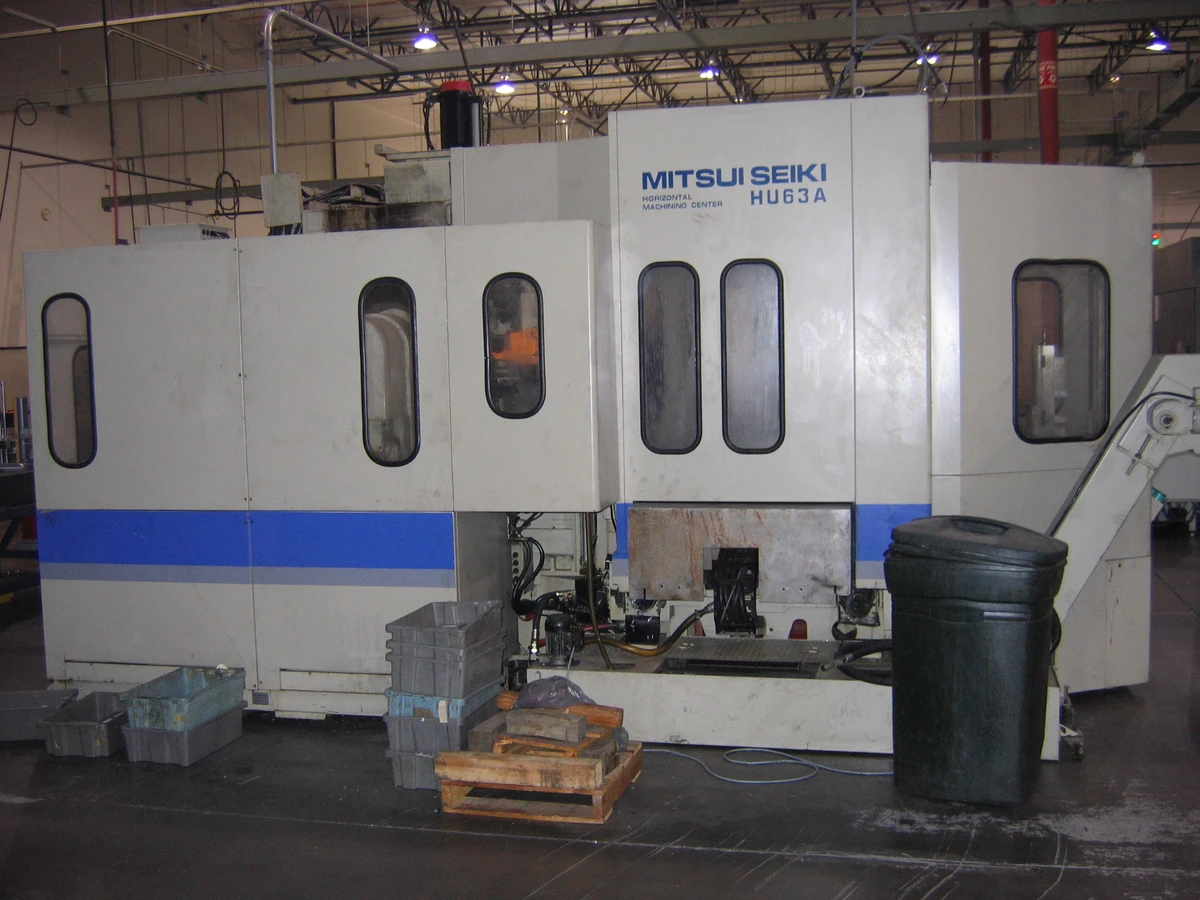

MITSUI SEIKI HU63A 4 AXIS HORIZONTAL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MITSUI SEIKI
Model:
HU63A 4 AXIS
Year:
1997
Stock #:
896
Status:
For Sale

Description

THE MITSUI SEIKI HU63A 4 AXIS HORIZONTAL IS EQUIPPED WITH A FANUC 16MC CONTROL, GLASS SCALES, FULL 4TH AXIS, 60 AT AND A CAT 50/ 6000 RPM SPINDLE.

X-AXIS TRAVEL35.43"899.92 mm
Y-AXIS TRAVEL31.49"799.85 mm
Z-AXIS TRAVEL31.49"799.85 mm
SPINDLE TAPERCAT 50CAT 50
SPINDLE DRIVE MOTOR25 hp
SPINDLE SPEED6,000 RPM6000 rpm
TOOL CAPACITY (ATC)6060
NUMBER OF PALLETS22
PALLET SIZE24.8" x 24.8"24.8" x 24.8"
PALLET SIZE (W)24.8"629.92 mm
PALLET SIZE (L)24.8"629.92 mm
4 AXIS PALLET TABLE INDEXING.001.001
CHIP CONVEYORYesYes
ControlCNC (FANUC 16)CNC (FANUC 16)
Weight39,600 LBS39,600 LBS

SPECIFICATINS:
NUMBER OF PALLETS 2
PALLET SIZE 24.80"
AXIS TRAVEL X - AXIS 35.43"
Y - AXIS 31.49"
Z - AXIS 31.49"
TABLE INDEXING .001 DEG. (FULL 4TH AXIS)
SPINDLE SPEED RANGE 6,000 RPM
SPINDLE TAPER 50
SPINDLE MOTOR 25 HP
AUTO TOOL CHANGE 60 ATC
MACHINE WEIGHT 39,600 LBS.

FANUC 16MC
GLASS SCALES
COOLANT THROUGH SPINDLE
FULL 4TH AXIS (.001 DEGREE)
CHIP CONVEYOR
TOOL BREAKAGE DETECTION
