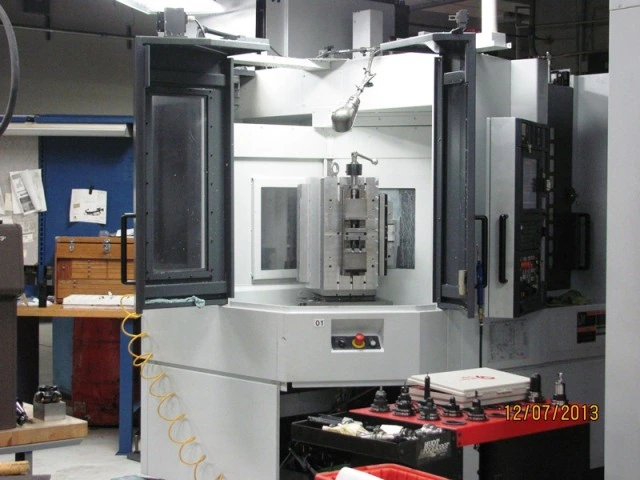

MORI SEIKI NH 4000 HORIZONTAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MORI SEIKI
Model:
NH 4000
Year:
2008
Stock #:
3860
Status:
For Sale
Serial #:
NH41HB2183

Description

THE MORI SEIKI NH 4000 COMES WITH (3) 15.7" PALLETS, MSX 701III CNC CONTROL WITH MAPPS, 120 ATC, 1000 PSI CHIP BLASTER AND A CAT 40/ 14000 RPM SPINDLE.

X-AXIS TRAVEL22"558.8 mm
Y-AXIS TRAVEL22"558.8 mm
Z-AXIS TRAVEL24.8"629.92 mm
SPINDLE TAPERCAT 40CAT 40
SPINDLE DRIVE MOTOR25 hp
SPINDLE SPEED14,000 RPM14000 rpm
TOOL CAPACITY (ATC)120120
NUMBER OF PALLETS33
PALLET SIZE15.7" x 15.7"15.7" x 15.7"
PALLET SIZE (W)15.7"398.78 mm
PALLET SIZE (L)15.7"398.78 mm
4 AXIS PALLET TABLE INDEXING1 Degree Index1 Degree Index
PART PROBEYESYES
TOOL PROBE/AUTO TOOL LENGTH MEASUREYesYes
HI-PRESSURE COOLANT SYSTEM1000 psi
CHIP CONVEYORYesYes
ControlCNC (MSX 701-3)CNC (MSX 701-3)

SPECIFICATIONS:
TABLE WORKING CAPACITY:          (3) 15.7" PALLETS
PALLET INDEXING:                  1 DEGREE INDEXER
X-AXIS TRAVEL:                    22"
Y-AXIS TRAVEL:                    22"
Z-AXIS TRAVEL:                    24.8"
SPINDLE TAPER:                    CAT 40
SPINDLE SPEEDS:                   14000 RPM
AUTOMATIC TOOL CHANGER:           120
MAIN MOTOR DRIVE:                 25 HP

MSX 701-3 CNC CONTROL (FANUC 31I)
MAPPS 3 SOFTWARE
RENISHAW TOUCH PROBE
METROL TABLE PROBE
ATLM
120 ATC
TOOL LIFE MANAGEMENT
1000 PSI CHIP BLASTER
7 MPA PRESSURE
3 PALLET
COORDINATE SYSTEM PAIRS 6
REAR DISPENSE CHIP CONVEYOR
ONLY 3900 HOURS!
