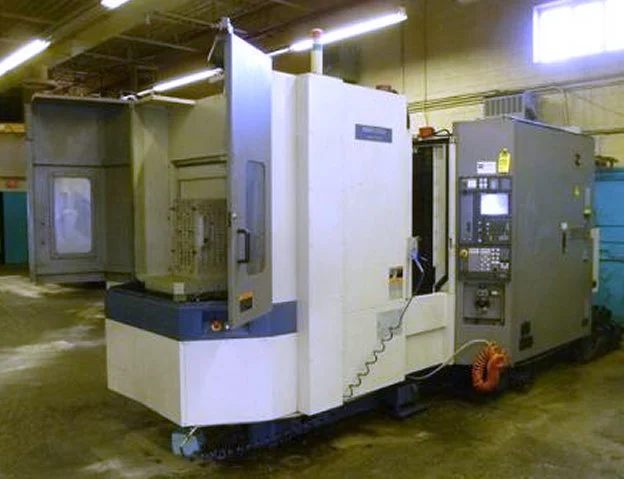

MORI SEIKI SH 500/50 CNC HORIZONTAL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MORI SEIKI
Model:
SH 500/50
Year:
1999
Stock #:
3010
Status:
For Sale
Serial #:
1109

Description

THE MORI SEIKI SH 500/50 IS A CAT 50/ 10000 RPM SPINDLE WITH A FANUC CNC CONTROL, 1 DEGREE INDEXING AND A 1000 PSI COOLANT THRU SPINDLE CHIPBLASTER.

X-AXIS TRAVEL24.8"629.92 mm
Y-AXIS TRAVEL23.6"599.44 mm
Z-AXIS TRAVEL33.5"850.9 mm
SPINDLE TAPERCAT 50CAT 50
SPINDLE SPEED10,000 RPM10000 rpm
MAXIMUM WORKPIECE DIAMETER28.7"728.98 mm
TOOL CAPACITY (ATC)6060
NUMBER OF PALLETS22
PALLET SIZE19.7" X 19.7"19.7" X 19.7"
PALLET SIZE (W)19.7"500.38 mm
PALLET SIZE (L)19.7"500.38 mm
PALLET LOAD CAPACITY1100 lb
4 AXIS PALLET TABLE INDEXING1 Degree Index1 Degree Index
HI-PRESSURE COOLANT SYSTEM1000 psi
CHIP CONVEYORYesYes
ControlCNC (MORI SEIKI MSC-502)CNC (MORI SEIKI MSC-502)

SPECIFICATIONS:
X-AXIS TRAVEL 24.8"
Y-AXIS TRAVEL 23.6"
Z-AXIS TRAVEL 33.5"
PALLET SIZE (2-PALLETS) 19.7" X 19.7"
PALLET INDEXING 1 DEGREE
PALLET LOADING CAPACITY 1,100 LBS MAX.
WORKPIECE SWING DIAMETER 28.7"
MAX. WORKPICE HEIGHT 27.6"
SPINDLE TAPER CAT 50
SPINDLE SPEEDS TO 10,000 RPM
SPINDLE MOTOR 30 HP
AUTOMATIC TOOL CHANGER 60 POSITIONS

MORI SEIKI MSC-502 (FANUC 16) CNC CONTROL
CHIP BLASTER 1,000 PSI COOLANT THROUGH SPINDLE
TURBO SYSTEMS CHIP CONVEYOR
