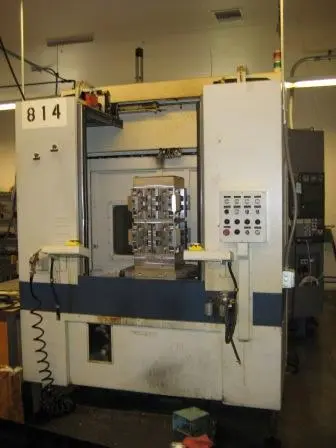

MORI SEIKI SH 503 HORIZONTAL MACHINING CENTER

SPECIFICATIONS:
NUMBER OF PALLETS 2
PALLET SIZE 19.7" X 19.7"
AXIS TRAVEL X - AXIS 24.8"
Y - AXIS 23.6"
Z - AXIS 25.6"
B - AXIS 1 DEG.
MAX. WORKPIECE SWING DIA. 28.7
TABLE SURFACE TO SPINDLE CENTER 2.0" - 25.6"
TABLE CENTER TO SPINDLE 5.97" - 31.5"
MAX. WORKPIECE HEIGHT 27.6"
MAX. TABLE LOAD 2,200 LBS.
B-AXIS TIME 2.0 SEC.
RAPID TRAVERSE RATE X,Y,Z AXES 1653 IPM
CUTTING FEED RATE 1653 IPM
SPINDLE SPEED RANGE 12,000 RPM
SPINDLE TAPER CAT# 40
SPINDLE MOTOR 30 HP AC
AUTO TOOL CHANGE 40 ATC
MAX TOOL LENGTH 14.2"
MAX TOOL DIA. (ADJ.) 5.9"
MAX TOOL WEIGHT 26.4"
TOOL CHANGE TIME (TOOL TO TOOL) 1.3 SEC.
PALLET CHANGE TIME 6 SEC.
MACHINE WEIGHT 33,800 LBS.
