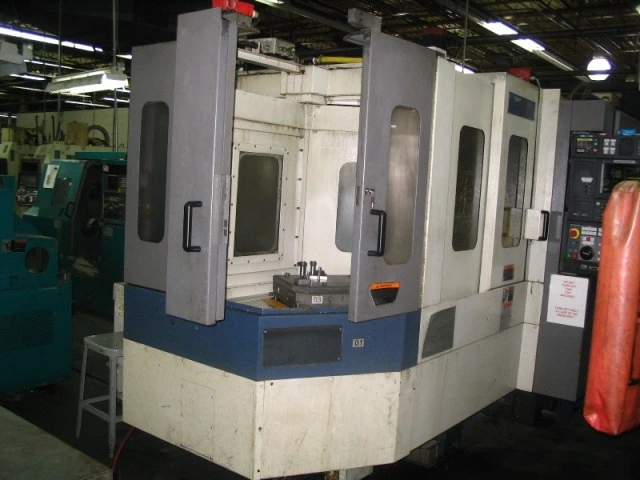

MORI SEIKI SH-403/40 3 APC HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
MORI SEIKI SH-403/40 3 APC HAS 12000 RPM SPINDLE, FANUC 18i CONTROL WITH CAPPS, 60 TOOL ATC AND THRU SPINDLE COOLANT.
SPECIFICATIONS:
NUMBER OF PALLETS 3
PALLET SIZE 15.7" X 15.7"
X - AXIS TRAVEL 22.0"
Y - AXIS TRAVEL 20.0"
Z - AXIS TRAVEL 20.0"
B - AXIS 1 DEG
MAX. TABLE LOAD 1,100 LBS.
TABLE INDEXING 1 DEG
B-AXIS TIME 2.0 SEC
SPINDLE SPEED RANGE 12,000 RPM
RAPID TRAVERSE RATE 1600 IPM
SPINDLE TAPER #40
SPINDLE MOTOR 30 HP AC
AUTO TOOL CHANGER 60
TOOL CHANGE TIME(TOOL-TOOL) 1.3 SEC
PALLET CHANGE TIME 6 SECONDS
FLOOR SPACE 112.6 X 160.2 X 99.1
MACHINE WEIGHT 22,800 LBS
MSG-501 FANUC 18i CONTROL WITH CAPPS
3 PALLET APC
12,000 RPM SPINDLE
1 DEGREE 4TH AXIS
60 TOOL ATC
THRU SPINDLE COOLANT
CHIP CONVEYOR
ALL AVAILABLE MANUALS
MORI SEIKI SH-403/40 3 APC HAS 12000 RPM SPINDLE, FANUC 18i CONTROL WITH CAPPS, 60 TOOL ATC AND THRU SPINDLE COOLANT.
Imperial
| X-AXIS TRAVEL | 22" |
| Y-AXIS TRAVEL | 20" |
| Z-AXIS TRAVEL | 20" |
| SPINDLE TAPER | CAT 40 |
| SPINDLE DRIVE MOTOR | 30 hp |
| SPINDLE SPEED | 12000 rpm |
| TOOL CAPACITY (ATC) | 60 |
| NUMBER OF PALLETS | 3 |
| PALLET SIZE | 15.7" X 15.7" |
| PALLET SIZE (W) | 15.7" |
| PALLET SIZE (L) | 15.7" |
| 4 AXIS PALLET TABLE INDEXING | 1 Degree Index |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| CHIP CONVEYOR | Yes |
| Control | CNC (FANUC 18I) |
| Dimensions | 112.6 X 160.2 X 99.1 |
| Weight | 22,800 LBS |
SPECIFICATIONS:
NUMBER OF PALLETS 3
PALLET SIZE 15.7" X 15.7"
X - AXIS TRAVEL 22.0"
Y - AXIS TRAVEL 20.0"
Z - AXIS TRAVEL 20.0"
B - AXIS 1 DEG
MAX. TABLE LOAD 1,100 LBS.
TABLE INDEXING 1 DEG
B-AXIS TIME 2.0 SEC
SPINDLE SPEED RANGE 12,000 RPM
RAPID TRAVERSE RATE 1600 IPM
SPINDLE TAPER #40
SPINDLE MOTOR 30 HP AC
AUTO TOOL CHANGER 60
TOOL CHANGE TIME(TOOL-TOOL) 1.3 SEC
PALLET CHANGE TIME 6 SECONDS
FLOOR SPACE 112.6 X 160.2 X 99.1
MACHINE WEIGHT 22,800 LBS
MSG-501 FANUC 18i CONTROL WITH CAPPS
3 PALLET APC
12,000 RPM SPINDLE
1 DEGREE 4TH AXIS
60 TOOL ATC
THRU SPINDLE COOLANT
CHIP CONVEYOR
ALL AVAILABLE MANUALS
