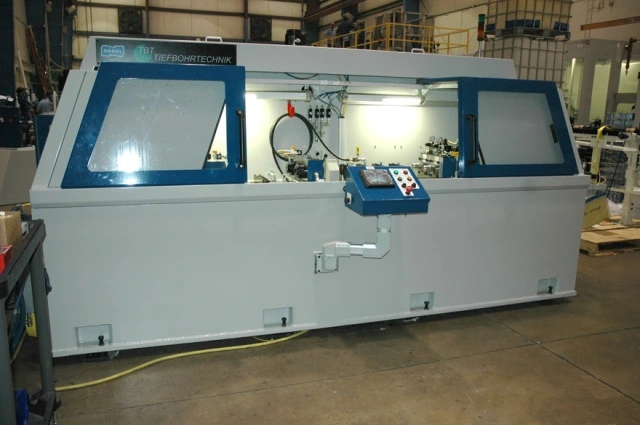

NAGEL DM 50-2-2 GUN DRILL

SPECIFICATIONS:
SPINDLE STROKE                  15/35"
NUMBER OF SPINDLES              2
BORE SIZES                      0.035-0.400
SPINDLE SPEED                   1000-24000 RPM
NUMBER OF DRILL SLIDES          2
FEED INF. VARIABLE              0.1”-500”/MIN
DRILL DIAMETER MAXIMUM          0.4”
MAXIMUM PART LENGTH             20”

*MACHINE HAS VERY LOW HOURS*

ADDITIONAL INFORMATION:
PRECISION GUNDRILLING MACHINE TYPE DM50-2-35 USA
TECHNICAL DATA OF THE MACHINE:
APPLICATION METHOD: GUNDRILLING
METHOD: ROTATING TOOL
COUNTER ROTATING WORKPIECE
DRILLING UNIT:
DRILL UNIT TYPE: DU50-2
SPINDLE TYPE: DIRECT DRIVE MOTOR SPINDLE
SPINDLE DRIVE: INF. VARIABLE MOTOR SPINDLE

COOLANT EQUIPMENT:
TYPE SPECIAL
TYPE OF HIGH-PRESSURE PUMP: PISTON PUMP
FILTERING 10 ?M
COOLANT MONITORING: ELECTRONICALLY WITH FEED-BACK TO THE OPERATOR INTERFACE.
TEMPERATURE CONTROL WATER-OIL HEAT EXCHANGER
UNIT MUST ME CONNECTED TO EXTERNAL CHILLER OR PLANT WATER TO
GUARANTEE PROPER MAINTAINING OF COOLANT TEMPERATURE.
VOLTAGE REQUIREMENTS 460 V ? 10% 60 HZ
