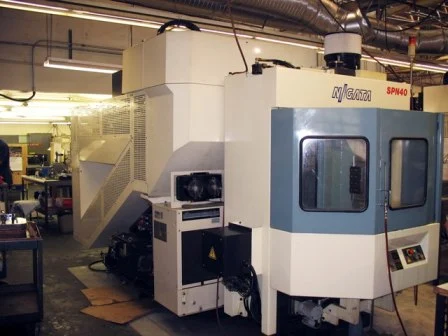

NIIGATA SPN 40 HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THIS NIIGATA SPN 40 HORIZONTAL HAS 2 PALLETS, A FULL 4TH AXIS - 360,000 POSITIONS, 215 PSI COOLANT THRU AND A CAT 40/ 12000 RPM SPINDLE.
SPECIFICATIONS:
NUMBER OF PALLETS 2
PALLET SIZE 15.7" X 15.7"
TABLE LOAD CAPACITY 880 LBS
AXIS TRAVEL X - AXIS 23.6
Y - AXIS 22.8"
Z - AXIS 22.0"
B - AXIS .001 N/C CONTOURING
RAPID TRAVERSE 1575 IPM
CUTTING FEEDRATE .04-1181 IPM
SPINDLE CENTER TO PALLET SURFACE 3.2"-26"
SPINDLE NOSE TO TABLE CENTER 5.9"-27.9"
SPINDLE DRIVE MOTOR 30 HP AC
SPINDLE TORQUE 151 FT-LBS
SPINDLE TAPER CAT # 40
SPINDLE SPEEDS 12,000 RPM
AUTO TOOL CHANGE 60 ATC
TOOL LENGTH 13.8"
MAX. DIA. 3.7"/7.95"
TOOL CHANGE TIME 1.0 SEC.
CHIP TO CHIP 3.2 SEC.
MACHINE WEIGHT 48,500 LBS
FANUC 16iM CONTROL
4TH AXIS (360,000 POSITION ROTARY TABLE WITH 4 AXES SIMUTANEOUS)
215 PSI COOLANT THRU SPINDLE
OVERHEAD SHOWER COOLANT SYSTEM
UPCHARGE DRAG-TYPE CONVEYOR w/MESH COVERED ROTARY DRUM FILTRATION
FANUC THREAD/SYNCHRONOUS CUTTING - G95
2 APC AUTOMATIC PROGRAM NUMBER SEARCH WITH EXTERNAL DATA INPUT
