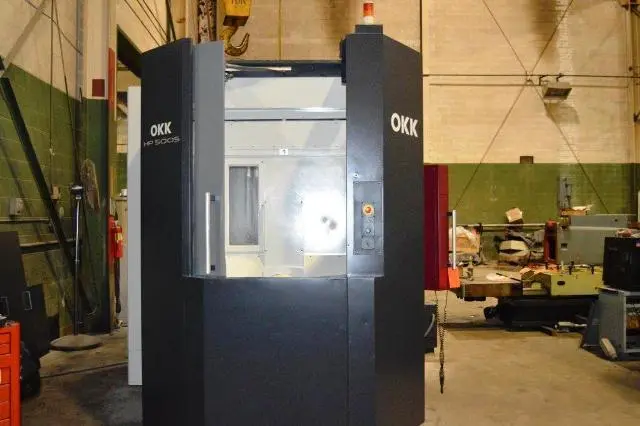

OKK HP 500S HORIZONTAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
OKK
Model:
HP 500S
Year:
2005
Stock #:
4231
Status:
For Sale
Serial #:
175

Description

THIS OKK HP 500S HORIZONTAL COMES WWITH (2) 19.6" PALLETS, COOLANT THRU SPINDLE, HELICAL INTERPOLATION AND A FULL 4TH AXIS.

X-AXIS TRAVEL24.8"629.92 mm
Y-AXIS TRAVEL24.8"629.92 mm
Z-AXIS TRAVEL23"584.2 mm
SPINDLE TAPERCAT 40CAT 40
SPINDLE DRIVE MOTOR30 hp
SPINDLE SPEED12,000 RPM12000 rpm
TOOL CAPACITY (ATC)6060
NUMBER OF PALLETS22
PALLET SIZE19.6" X 19.6"19.6" X 19.6"
PALLET SIZE (W)19.6"497.84 mm
PALLET SIZE (L)19.6"497.84 mm
PALLET LOAD CAPACITY880 lb
4 AXIS PALLET TABLE INDEXING.001.001
TOOL PROBE/AUTO TOOL LENGTH MEASUREYesYes
CHIP CONVEYORYesYes
ControlCNC (FANUC 180i-MB)CNC (FANUC 180i-MB)

SPECIFICATIONS:
PALLET SIZE                 19.6" X 19.6"
MAX PALLET LOAD             880 LBS
PALLET INDEXING             .001 DEGREE (POSITIONING)
TRAVELS (X)                 24.8"
        (Y)                 24.4"
        (Z)                 23"
SPINDLE TAPER               CAT 40
SPINDLE SPEED               12,000 RPM
RAPID TRAVERSE              2,362 IPM
SPINDLE MOTOR               30 HP
TOOL CHANGER                60 ATC

FANUC 180IMB CNC CONTROL
SOFT-SCALE II
HELICAL INTERPOLATION
1280M PART PROGRAM STORAGE
CUSTOM MACRO B
ADDITIONAL TOOL OFFSETS (200)
TOOL LIFE MANAGEMENT
CHIP CONVEYOR
COOLANT THRU SPINDLE
COOLANT TANK & PUMP
ALL AVAILABLE MANUALS
