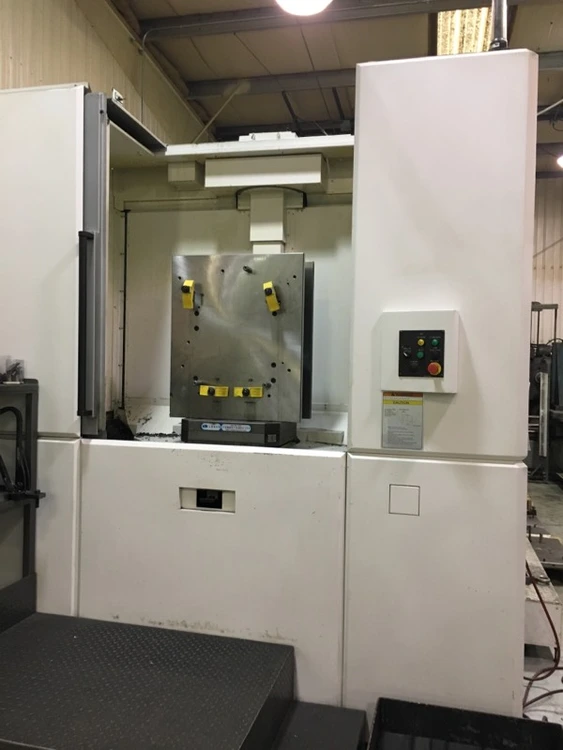

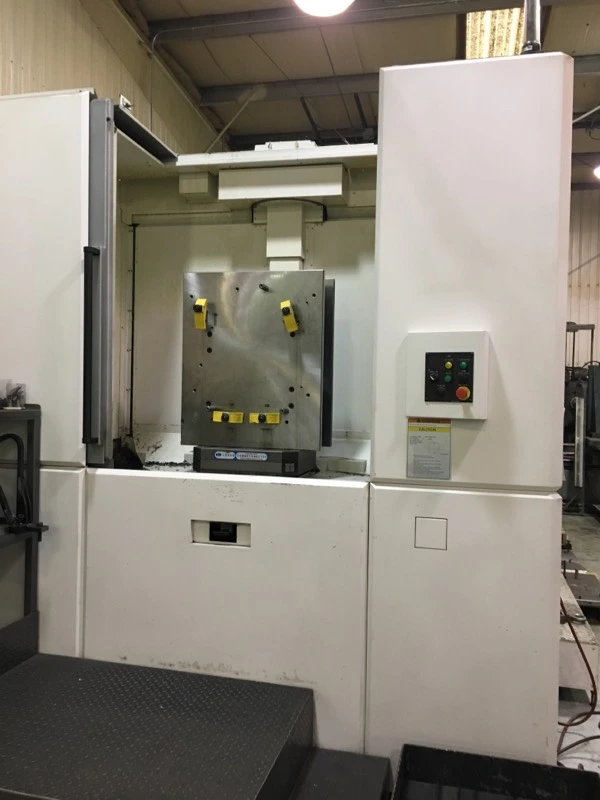

OKUMA MA 500H-II 4 AXIS HORIZONTAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
OKUMA
Model:
MA 500H-II 4 AXIS
Year:
2015
Stock #:
5123
Status:
For Sale

Description

WELL MAINTAINED 2015 OKUMA MA 500H 4 AXIS HORIZONTAL HAS A BIG PLUS 50 TAPER/ 12000 RPM SPINDLE, 2 TOMBSTONES, A FULL 4TH AND A 60 STATION ATC.

X-AXIS TRAVEL27.56"700.02 mm
Y-AXIS TRAVEL35.43"899.92 mm
Z-AXIS TRAVEL30.71"780.03 mm
SPINDLE TAPERCAT 50CAT 50
SPINDLE DRIVE MOTOR40 hp
SPINDLE SPEED12,000 RPM12000 rpm
TOOL CAPACITY (ATC)6060
NUMBER OF PALLETS22
PALLET SIZE19.69" x 19.69"19.69" x 19.69"
PALLET SIZE (W)19.69"500.13 mm
PALLET SIZE (L)19.69"500.13 mm
4 AXIS PALLET TABLE INDEXING.001.001
HI-PRESSURE COOLANT SYSTEM0 psi
CHIP CONVEYORYesYes
ControlCNC (OSP 300)CNC (OSP 300)
Dimensions235" X 122"235" X 122"
Weight50,160 LBS50,160 LBS

SPECIFICATIONS:
X AXIS               27.56"
Y AXIS               35.43"
Z AXIS               30.71"
POWER                40 HP
RPM                  12000
# ATC                60
TAPER                50 BIG PLUS
PALLET-W             19.69"
PALLET-L             19.69"
# AXIS               4
PALLET INDEX (B-AXIS).001
X-AXIS RAPID FEEDRATE 2362
Y-AXIS RAPID FEEDRATE 2362
Z-AXIS RAPID FEEDRATE 2362
DIMENSIONS            122" X 235" (FLOORSPACE)
WEIGHT                50160 POUNDS

OSP 300 CONTROL
FULL 4TH AXIS
BIG PLUS SPINDLE
15" MONITOR
HI PRESSURE COOLANT THRU SPINDLE
CHIP CONVEYOR
(2) TOMBSTONES
(30) TOOL HOLDERS
TOOL BREAKAGE DETECTION
SHOWER COOLANT
CHILLER
LOW HOURS
