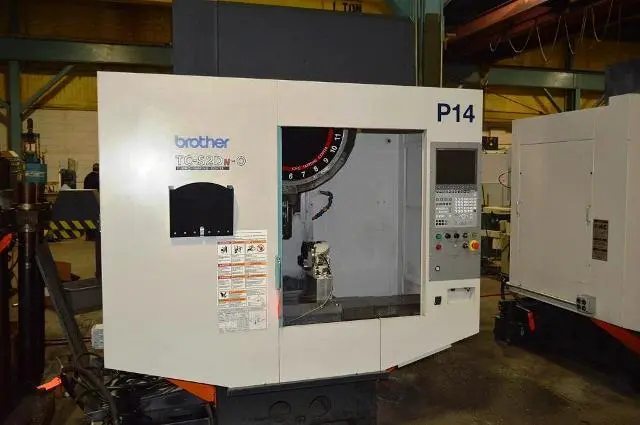

BROTHER TCS2DN-O DRILL & TAP/ 4 AXIS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
BROTHER
Model:
TCS2DN-O DRILL & TAP/ 4 AXIS
Year:
2013
Stock #:
5488
Status:
For Sale
Serial #:
221691

Description

THIS BROTHER TCS2DN 4 AXIS DRILLING & TAPPING CENTER – USED PRIMARILY IN THE MEDICAL INDUSTRY, COMES WITH A B00 CNC CONTROL, 21 POSITION ATC, 10K RPM SPINDLE, CAT 30 TAPER AND 6” ROTARY TABLE – 2013.

X Travel27.6"701.04 mm
Y Travel15.7"398.78 mm
Z Travel11.6"294.64 mm
Spindle Speed10,000 RPM10000 rpm
Tool Capacity (ATC)3030
Table Size (W)31.5"800.1 mm
Table Size (L)15.7"398.78 mm
Main Spindle Motor10 hp
Spindle TaperCAT 30CAT 30
4 Axis Table Rotation.001 N/C Contouring 360000 Degrees.001 N/C Contouring 360000 Degrees
4th Axis Rotary Table Size6"152.4 mm
Coolant ThruYesYes
Coolant Thru High PressureYesYes
Part ProbeNoNo
Tool Probe/Auto Tool Length MeasurementNoNo
ControlCNC (BROTHER B-00)CNC (BROTHER B-00)
Weight53005300

SPECIFICATIONS:
# OF AXIS 4
TABLE SIZE 31.5" X 15.7"
TABLE CAPACITY 560 POUNDS
X-AXIS TRAVEL 27.6"
Y-AXIS TRAVEL 15.7"
Z-AXIS TRAVEL 11.6"
HOURSE POWER 10
SPINDLE SPEED 10,000 RPM
SPINDLE TAPER 30
TOOL CHANGER CAPACITY 21
X-AXIS FEEDRATE 1989 IPM
Y-AXIS FEEDRATE 1989 IPM
Z-AXIS FEEDRATE 1989 IPM
WEIGHT: 5300 POUNDS

BROTHER B-00 CONTROL
6" YUKIWA ROTARY TABLE WITH TAILSTOCK
COOLANT TANK & PUMP
COOLANT THRU SPINDLE
