DECKEL MAHO DMC 100U DUOBLOCK 5 AXIS HORIZONTAL/VERTICAL MACHINING CENTER
MACHINING CENTERS, HORIZONTAL.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

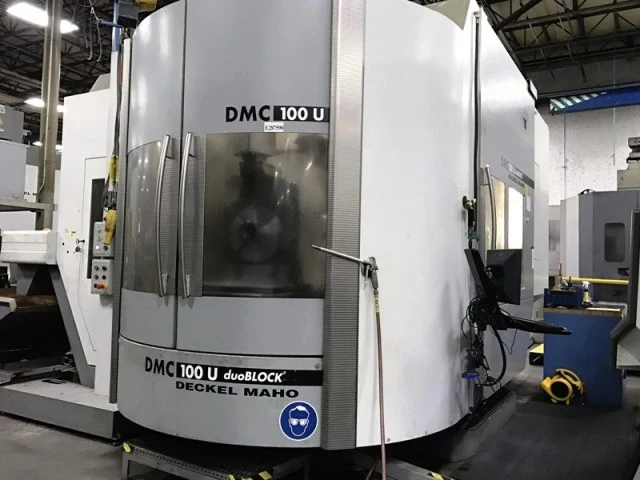

THIS DECKEL MAHO DMC 100U DUOBLOCK 5 AXIS HORIZONTAL/VERTICAL MACHINING CENTER FEATURES A HEIDENHAIN ITNC 530 5 AXIS CONTROL, 120 ATC, RENISHAW PROBE, BLUM LASER TOOL MEASUREMENT SYSTEM, 2 TSUDAKOMA ROTARY TABLES, HEIDENHAIN GLASS SCALES X,Y,Z AND
HIGH PRESSURE THRU SPINDLE COOLANT.
| PALLET SIZE | 39" X 39" |
| 4 AXIS PALLET TABLE INDEXING | .001 |
| TOOL CAPACITY (ATC) | 120 |
| SPINDLE TAPER | HSK 100 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE (W) | 39.4" |
| PALLET SIZE (L) | 39.4" |
| PALLET LOAD CAPACITY | 3607 lb |
| X-AXIS TRAVEL | 39.4" |
| Y-AXIS TRAVEL | 39.4" |
| Z-AXIS TRAVEL | 39.4" |
| SPINDLE SPEED | 10000 rpm |
| 5 AXIS PROGRAMMABLE AXIS'S | YES |
| SPINDLE DRIVE MOTOR | 50 hp |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| CHIP CONVEYOR | Yes |
| Control | CNC (HEIDENHAIN ITNC 530 5 AXIS CONTROL) |
SPECIFICATIONS:
PALLET SIZE 39" X 39"
NUMBER OF PALLETS 2
TABLE LOAD CAPACITY 3607 LBS.
X AXIS TRAVEL 39.4"
Y AXIS TRAVEL 39.4"
Z AXIS TRAVEL 39.4"
B AXIS TRAVEL TABLE 360,000 DEGREE
A AXIS (ROTARY TABLE) .001 N/C
SPINDLE TAPER HSK 100
SPINDLE SPEED TO 10,000 RPM
MAIN MOTOR 50 HP AC
RAPID TRAVERSE X, Y ,Z 1381, 1381, 1381 IPM
CUTTING FEEDRATE 1181 IPM
AUTO TOOL CHANGER 120 ATC
MAXIMUM TOOL
W/ ADJACENT EMPTY 9"
MAXIMUM WEIGHT 66 LBS.
HEIDENHAIN ITNC 530 5 AXIS CONTROL
(2) TSUDAKOMA ROTARY TABLES
BLUM LASER TOOL MEASUREMENT SYSTEM
HEIDENHAIN GLASS SCALES X,Y,Z
HIGH PRESSURE THRU SPINDLE COOLANT
40 BAR & 80 BAR SYSTEM
RENISHAW PROBE
SPINDLE HEAD VERTICAL OR HORIZONTAL POSITION
CHIP CONVEYOR
ALL AVAILABLE MANUALS
