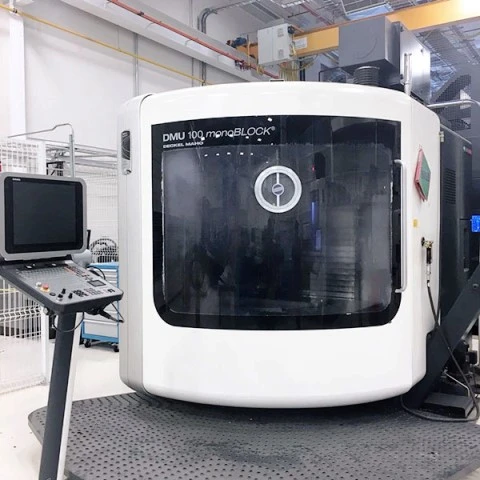

DMG DMU 100 MONOBLOCK HORIZONTAL/ VERTICAL
Have one to sell?
ConditionUsed
1 available
HERE'S A DMG DMU 100 MONOBLOCK HORIZONTAL/ VERTICAL CNC EQUIPPED WITH A Heidenhain iTNC-530 CONTROL, NC ROTARY TABLE INTEGRATED INTO FIXED TABLE, NC ROTARY TABLE (C-AXIS) NC_CONTROLLED SWIVEL MILLING HEAD (B-AXIS) AND 60 ATC.
SPECIFICATIONS:
SPINDLE TAPER HSK-63
X - AXIS TRAVEL 49.2"
Y - AXIS TRAVEL 28"
Z - AXIS TRAVEL 28"
TABLE SIZE - L 59.1"
TABLE SIZE - W 31.5"
TABLE SPEED 30 Rpm
TABLE INDEXING 0.001 Deg
TABLE WEIGHT CAPACITY 2,425 Lbs
SPINDLE SPEED 10,000 RPM
SPINDLE MOTOR (HP) 20.1 Hp/13.4 HP
SPINDLE HEAD SWIVEL 135 Deg
SPINDLE HEAD NUTATING 0-90 Deg
TOOL CHANGER TYPE 60 ATC
Heidenhain iTNC-530/CRT
3D CNC CONTROL: ITNC 530
NC ROTARY TABLE INTEGRATED INTO FIXED TABLE
NC ROTARY TABLE (C-AXIS) NC_CONTROLLED SWIVEL MILLING HEAD (B-AXIS)
PRODUCTION PACKAGE WITH INTERNAL COOLANT SUPPLY
20 OR 40 BAR THROUGH THE SPINDLE CENTER (FORM AD)
600-L COOLANT TANK
PAPER BAND FILTER ROTOCLEAR
CHIP FLUSHER IN THE WORK AREA DOOR
HEIDENHAIN TS 649 TOOL MEASUREMENT IN THE WORK AREA THROUGH A LASER
OIL AND EMULSION MIST SEPARATOR
4-COLOR SIGNAL LAMP 3D QUICKSET® TOOL KIT
HERE'S A DMG DMU 100 MONOBLOCK HORIZONTAL/ VERTICAL CNC EQUIPPED WITH A Heidenhain iTNC-530 CONTROL, NC ROTARY TABLE INTEGRATED INTO FIXED TABLE, NC ROTARY TABLE (C-AXIS) NC_CONTROLLED SWIVEL MILLING HEAD (B-AXIS) AND 60 ATC.
Imperial
| X Travel | 49.2" |
| Y Travel | 28" |
| Z Travel | 28" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 31.5" |
| Table Size (L) | 59.1" |
| Main Spindle Motor | 20 hp |
| Spindle Taper | HSK 63 |
| Spindle Nose To Table Top | 31 |
| Built In or Bolt On Table | Built In |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Coolant Thru | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (Heidenhain iTNC-530/CRT) |
SPECIFICATIONS:
SPINDLE TAPER HSK-63
X - AXIS TRAVEL 49.2"
Y - AXIS TRAVEL 28"
Z - AXIS TRAVEL 28"
TABLE SIZE - L 59.1"
TABLE SIZE - W 31.5"
TABLE SPEED 30 Rpm
TABLE INDEXING 0.001 Deg
TABLE WEIGHT CAPACITY 2,425 Lbs
SPINDLE SPEED 10,000 RPM
SPINDLE MOTOR (HP) 20.1 Hp/13.4 HP
SPINDLE HEAD SWIVEL 135 Deg
SPINDLE HEAD NUTATING 0-90 Deg
TOOL CHANGER TYPE 60 ATC
Heidenhain iTNC-530/CRT
3D CNC CONTROL: ITNC 530
NC ROTARY TABLE INTEGRATED INTO FIXED TABLE
NC ROTARY TABLE (C-AXIS) NC_CONTROLLED SWIVEL MILLING HEAD (B-AXIS)
PRODUCTION PACKAGE WITH INTERNAL COOLANT SUPPLY
20 OR 40 BAR THROUGH THE SPINDLE CENTER (FORM AD)
600-L COOLANT TANK
PAPER BAND FILTER ROTOCLEAR
CHIP FLUSHER IN THE WORK AREA DOOR
HEIDENHAIN TS 649 TOOL MEASUREMENT IN THE WORK AREA THROUGH A LASER
OIL AND EMULSION MIST SEPARATOR
4-COLOR SIGNAL LAMP 3D QUICKSET® TOOL KIT
