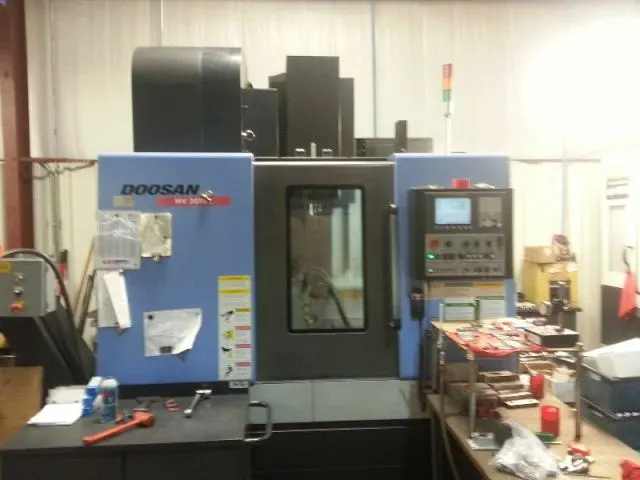

DOOSAN MV 3016L

SPECIFICATIONS:
MAX TABLE LOAD               1320 LBS
TABLE SIZE:                  16.9" X 36.2"
X AXIS                       30"
Y-AXIS                       16.1"
Z-AXIS                       20.1
RAPID TRAVERS X & Y          1,417 IPM
Z                            1,259 IPM
CUTTING FEED                 315 IPM
SPINDLE TAPER                CAT 40
SPINDLE SPEEDS               8,000 RPM
SPINDLE TO TABLE             5.9" TO 26"
SPINDLE DRIVE MOTOR          15 HP
AUTOMATIC TOOL CHANGER       30 ATC
APPROXIMATE DIMENSIONS       88" X 88" X 106"
MACHINE WEIGHT:              11,023 LBS
