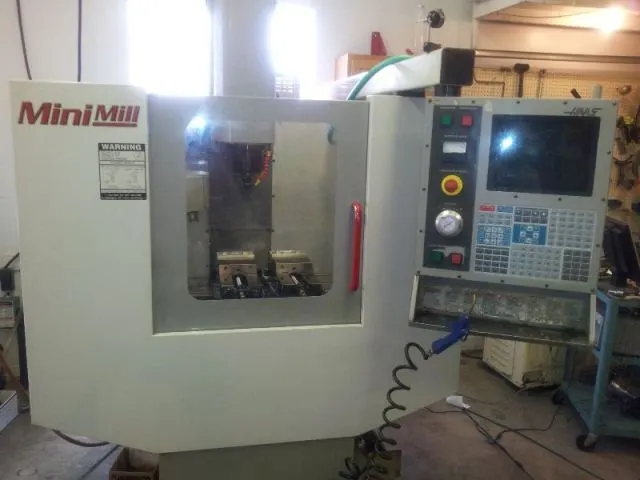

HAAS MINI MILL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
HAAS
Model:
MINI MILL
Year:
2001
Stock #:
3507
Status:
For Sale
Serial #:
24708

Description

THIS HAAS MINI MILL VERTICAL TRAVELS 16 X 12 X 10 WITH RIGID TAPPING AND A 6000 RPM SPINDLE. PREPPED FOR A 4TH AXIS

X Travel16"406.4 mm
Y Travel12"304.8 mm
Z Travel10"254 mm
Spindle Speed6,000 RPM6000 rpm
Tool Capacity (ATC)1010
Table Size (W)36"914.4 mm
Table Size (L)12"304.8 mm
Main Spindle Motor7.5 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top4" - 14"4" - 14"
ControlCNC (HAAS)CNC (HAAS)
Dimensions84" X 60" X 84"84" X 60" X 84"
Weight3400 LBS3400 LBS

SPECIFICATIONS:
TABLE SIZE 36" X 12"
MAX TABLE LOAD 500 LBS
X AXIS TRAVEL 16"
Y AXIS TRAVEL 12"
Z AXIS TRAVEL 10"
SPINDLE NOSE->TABLE TOP 4" - 14"
SPINDLE TAPER CT40
SPINDLE MOTOR 7.5 HP
SPINDLE SPEEDS 6,000 RPM
RAPID TRAVERSE RATES 650 IPM
CUTTING FEED RATES 500 IPM
TOOL STATIONS 10 ATC
MACHINE WEIGHT 3,400 LBS
MACHINE DIMENSIONS 78"L X 80"W X 98"H

HAAS CNC CONTROL
RIGID TAPPING
QUICK CODE
RS-232
4TH AXIS READY
COOLANT SYSTEM
