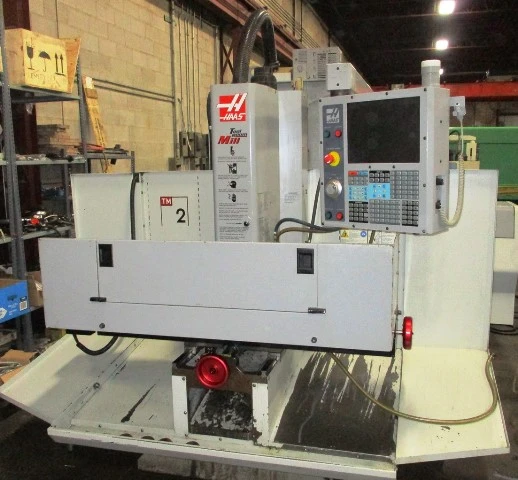

HAAS TM-2

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
HAAS
Model:
TM-2
Year:
2008
Stock #:
5290
Status:
For Sale

Description

HAAS TM-2, Vertical Machining Center, manufactured in 2008. Key specs: X Travel: 40", Y Travel: 16", Z Travel: 16", Spindle Speed: 4000 rpm, ATC: 20, Table: 57.75" x 10.5", Spindle Motor: 7.5 hp, CAT 40 taper. Includes HAAS CNC Control, 4th axis wiring, and more.

X Travel40"1,016 mm
Y Travel16"406.4 mm
Z Travel16"406.4 mm
Spindle Speed4,000 RPM4000 rpm
Tool Capacity (ATC)2020
Table Size (W)57.75"1,466.8 mm
Table Size (L)10.5"266.7 mm
Main Spindle Motor7.5 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top4" TO 20"4" TO 20"
ControlCNC (HAAS)CNC (HAAS)
Weight4000 LBS4000 LBS

HAAS TM-2
NEW 2008

SPECIFICATION:
X-AXIS TRAVEL      40"
Y-AXIS TRAVEL      16"
Z-AXIS TRAVEL      16"
TABLE AREA         57.75" X 10.5"
SPINDLE NOSE TO TABLE
     MIN. - MAX.   4" TO 20"
SPINDLE TAPER      CAT 40
SPINDLE SPEED      4,000 RPM
SPINDLE MOTOR      7.5 HP
APPROX. WEIGHT     4,000 LBS.
ELECTRICS          208/240 V
                   3/ 1 PHASE

HAAS CNC CONTROL
BRUSHLESS 4TH AXIS WIRING
CHIP AND COOLANT GUARD
INTUITIVE PROGRAMMING SYSTEM
MACRO OPTION
RIGID TAPPING
VISUAL QUICK CODE
CHIP PAN EXTENSION
