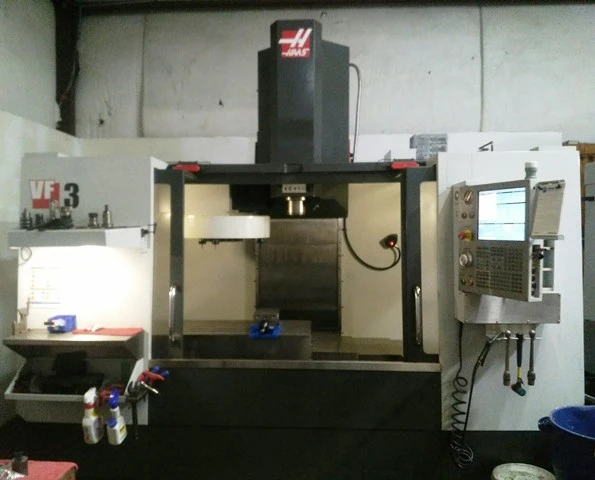

HAAS VF - 3

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
HAAS
Model:
VF - 3
Year:
2013
Stock #:
5202
Status:
For Sale

Description

LOW HOUR HAAS VF-3 CNC VERTICAL HAS AN 8100 RPM CAT 40 SPINDLE WITH 40" X 20" X 25" TRAVELS, TOOL PROBE AND IS PREPPED FOR A 4TH AXIS.

X Travel40"1,016 mm
Y Travel20"508 mm
Z Travel25"635 mm
Spindle Speed8,100 RPM8100 rpm
Tool Capacity (ATC)2424
Table Size (W)48"1,219.2 mm
Table Size (L)18"457.2 mm
Main Spindle Motor20 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top4" - 29"4" - 29"
Tool Probe/Auto Tool Length MeasurementYesYes
ControlCNC (HAAS)CNC (HAAS)
Dimensions118" x 110" x 118"118" x 110" x 118"
Weight13,500 LBS13,500 LBS

HAAS VF-3
NEW 2013

SPECIFICATIONS:
TABLE SIZE       48" X 18"
TRAVELS          40" X 20" X 25"
TAPER            40
SPINDLE SPEED    8,100 RPM
MAIN MOTOR       20HP
ATC POSITION     24

HAAS CNC CONTROL
TOOL PROBE ONLY
4TH AXIS DRIVE
LOW HOURS!
