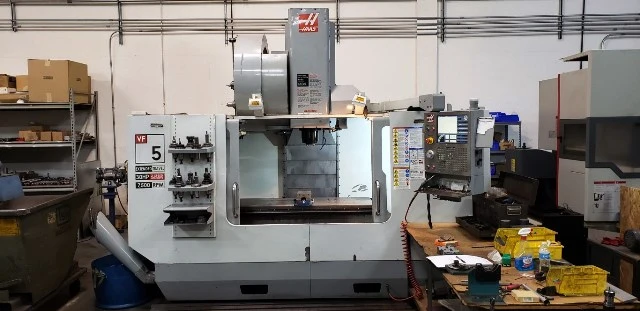

HAAS VF 5/50XT VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THIS HAAS VF 5/50XT CNC VERTICAL HAS EXTENDED TRAVELS OF 60 X 26 X 25, 7500 RPM SPINDLE WITH A CAT 50 TAPER, 30 TOOLS AND CHIP AUGER.
2008 HAAS VF-5/50XT
NEW 2008
SPECIFICATIONS:
TABLE SIZE 23" X 62"
MAX TABLE LOAD 4,000 LBS
X-AXIS TRAVEL 60"
Y-AXIS TRAVEL 26"
Z-AXIS TRAVEL 25"
SPINDLE TAPER CT 50
SPINDLE SPEED 7,500 RPM
SPINDLE MOTOR 30 HP
ATC 30+1 SIDE-MOUNT
HAAS CNC CONTROL
2 SPEED GEAR BOX
CHIP AUGER
PROGRAMMABLE COOLANT NOZZLE
RIGID TAP
4TH AXIS PRE-WIRE
USB PORT
EXTENDED X-AXIS TRAVEL 60
HIGH INTENSITY LIGHTING
REMOTE JOG HANDLE
COOLANT TANK & PUMP
THIS HAAS VF 5/50XT CNC VERTICAL HAS EXTENDED TRAVELS OF 60 X 26 X 25, 7500 RPM SPINDLE WITH A CAT 50 TAPER, 30 TOOLS AND CHIP AUGER.
Imperial
| X Travel | 60" |
| Y Travel | 26" |
| Z Travel | 25" |
| Spindle Speed | 7500 rpm |
| Tool Capacity (ATC) | 31 |
| Table Size (W) | 62" |
| Table Size (L) | 23" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 7.9" - 32.9" |
| Control | CNC (HAAS) |
2008 HAAS VF-5/50XT
NEW 2008
SPECIFICATIONS:
TABLE SIZE 23" X 62"
MAX TABLE LOAD 4,000 LBS
X-AXIS TRAVEL 60"
Y-AXIS TRAVEL 26"
Z-AXIS TRAVEL 25"
SPINDLE TAPER CT 50
SPINDLE SPEED 7,500 RPM
SPINDLE MOTOR 30 HP
ATC 30+1 SIDE-MOUNT
HAAS CNC CONTROL
2 SPEED GEAR BOX
CHIP AUGER
PROGRAMMABLE COOLANT NOZZLE
RIGID TAP
4TH AXIS PRE-WIRE
USB PORT
EXTENDED X-AXIS TRAVEL 60
HIGH INTENSITY LIGHTING
REMOTE JOG HANDLE
COOLANT TANK & PUMP
