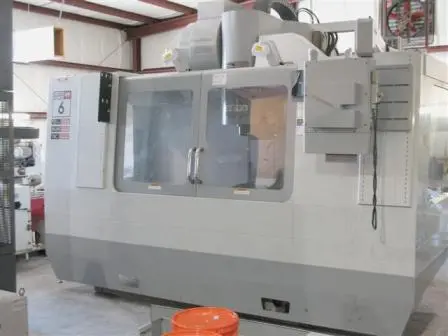

HAAS VF-6SS 5-AXIS WITH TR3105XB TRUNION

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
HAAS
Model:
VF 6SS/ 5 AXIS
Year:
2006
Stock #:
2052
Status:
For Sale

Description

HARD TO FIND HAAS VF-6SS 5-AXIS WITH TR3105XB TRUNION, PART AND TOOL PROBE, 8" RISER ON X, CAT 40 TAPER AND 64/ 32/ 30 TRAVELS.

X Travel64"1,625.6 mm
Y Travel32"812.8 mm
Z Travel30"762 mm
Spindle Speed12,000 RPM12000 rpm
Tool Capacity (ATC)2525
Table Size (W)64"1,625.6 mm
Table Size (L)28"711.2 mm
Main Spindle Motor30 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top4" - 32"4" - 32"
5 Axis Programmable Axis'sFull 5 Axis's ContouringFull 5 Axis's Contouring
Table Type A-Axis Trunnion Tilt RangeTR3105XBTR3105XB
Coolant ThruYesYes
Coolant Thru High PressureYesYes
Hi Pressure Coolant System1000 psi
ControlCNC (HAAS)CNC (HAAS)
Dimensions178" x 135" x 129"178" x 135" x 129"
Weight22,850 LBS22,850 LBS

SPECIFICATIONS:
TABLE WIDTH 28 "
TABLE LENGTH 64 "
MAXIMUM TABLE LOAD 4000 LBS
X-AXIS TRAVEL 64 "
Y-AXIS TRAVEL 32 "
Z-AXIS TRAVEL 30 "
SPINDLE NOSE TO TABLE TOP MINIMUM 4 "
MAXIMUM 32 "
SPINDLE SPEED 0-12000 RPM
SPINDLE TAPER #40
MAIN MOTOR (HP) 30 HP
TOOL CHANGER: TOOL CHANGER POSITIONS 24 ATC
ADDITIONAL SPECS: TOOL CAHNGE TIME (TOOL TO TOOL) 1.6 SECONDS
RAPID TRAVERSE RATE 1,200 IPM
CUTTING FEED RATES 833 IPM
DIEMNSIONS 178" x 135" x 129"
WEIGHT 22,850 LBS.

HAAS 32 BIT/CRT CNC CONTROL
RS-232 INTERFACE
ETHERNET & 40 GIG HARD DRIVE
3.5" FLOPPY DISC DRIVE
VISUAL QUICK CODE PROGRAMMING
PART & TOOL PROBING
REMOTE JOG HANDLE
HAAS TR3105XB 5TH AXIS TABLE
8" RISER (Z-AXIS)
ROTATION & SCALING/SPNDL ORIENTATION
PROGRAMMABLE COOLANT
COOLANT THRU SPINDLE/HIGH PRESSURE (1000 PSI)
POWER FAULT DETECTION
AUTOMATIC CHIP AUGER
24 + 1 POSITION SIDE MOUNT AUTOMATIC TOOL CHANGER
RIGID TAPPING
USB PORT
HIGH-INTENSITY LIGHTING
