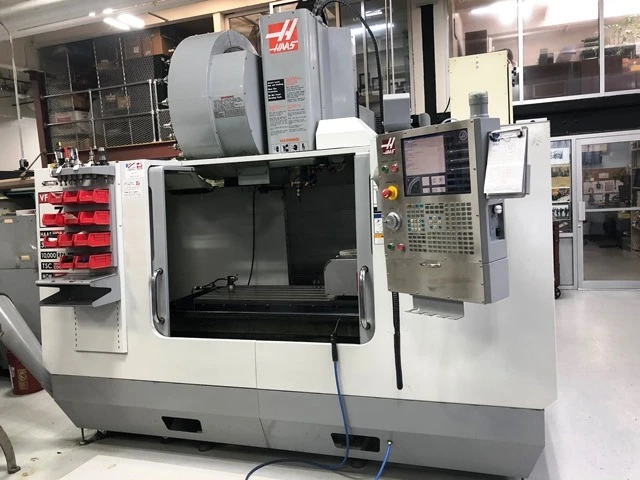

HAAS VF-3/ 5 AXIS TRUNION
Have one to sell?
ConditionUsed
1 available
HARDLY USED HAAS VF-3 COMES EQUIPPED WITH A FULLY INTEGRATED TSUDIKOMA 5 AXIS TRUNION TABLE AND CHIP AUGER ALONG WITH A 40 STATION TOOL CHANGER AND 40/ 20/ 25 TRAVELS.
HAAS VF3/ 5 AXIS W/GEAR BOX
NEW 2007
SPECIFICATIONS:
TABLE SIZE 48" X 18
MAXIMUM WEIGHT ON TABLE 3500 LBS
NUMBER OF AXIS 5 AXIS
X AXIS TRAVEL 40
Y AXIS TRAVEL 20"
Z AXIS TRAVEL 25"
TABLE TO SPINDLE NOSE 4 - 29
AUTOMATIC TOOL CHANGER 40 STATIONS
SPINDLE TAPER CAT #40 TAPER
SPINDLE SPEED 10,000 RPM
SPINDLE MOTOR 30 HP
CHANGE TIME (TOOL TO TOOL) 4.0 SEC
(CHIP TO CHIP) 4.5 SEC
TRANSMISSION 2-SPEED GEARED BOX
FEEDRATE RAPID ON (X,Y,Z) 1000 IPM
MACHINE DIMENSIONS 118 X 110 X 90
MACHINE WEIGHT 12,500 LBS.
EQUIPPED WITH:
HAAS CNC CONTROL
TSUDIKOMA 5 AXIS TRUNION - FULLY INTEGRATED IN HAAS CONTROL
CHIP AUGER
PROGRAMMABLE COOLANT
THRU SPINDLE COOLANT
4TH & 5TH AXIS DRIVE
2 SPEED GEAR BOX
HIGH SPEED MACHINING
MINIMUM OIL MACHINING OPTION
RENISHAW PROBE
TOOL PRESETTER
40 POCKET SIDE MOUNT TOOL CHANGE
FLOPPY DRIVE
REMOTE JOG HANDLE
AUTO AIR GUN
30HP
10K RPM
ALL AVAIALABLE TOOLS & MANUALS
