HAAS VF-3SS VERTICAL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
HAAS
Model:
VF-3SS
Year:
2016
Stock #:
5270
Status:
For Sale
Serial #:
1132177

Description

VERY LOW HOUR HAAS VF 3SS HAS A 12000 RPM SPINDLE WITH BT 40 TAPER AN A ZIPPY 1400 IPM FEEDRATE. IT HAS A 24 STATION SIDE MOUNT TOOL CHANGER AND TRAVELS OF 40/ 20 /25.

X Travel40"1,016 mm
Y Travel20"508 mm
Z Travel25"635 mm
Spindle Speed12,000 RPM12000 rpm
Tool Capacity (ATC)2424
Table Size (W)48"1,219.2 mm
Table Size (L)18"457.2 mm
Main Spindle Motor30 hp
Spindle TaperBT 40BT 40
Spindle Nose To Table Top4" - 29"4" - 29"
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
ControlCNC (HAAS)CNC (HAAS)
Dimensions122" X 93" X 111"122" X 93" X 111"
Weight13,500 LBS13,500 LBS

HAAS VF-3SS VMC
NEW 2016

TABLE (WXL)           18" X 48"
MAX. WEIGHT ON TABLE  3500 LBS.
X-AXIS TRAVELS        40"
Y-AXIS TRAVELS        20"
Z-AXIS TRAVELS        25"
SPINDLE SPEED         12,000 RPM
MOTOR                 30-HP
TAPER                 BT 40
X,Y,Z AXIS FEEDRATE   1400 IPM
TOOL CHANGER          24 + 1 SIDE MOUNT
APPROX. DIMENSIONS    122" X 93" X 111"
APPROX. WEIGHT        13,500 LBS.

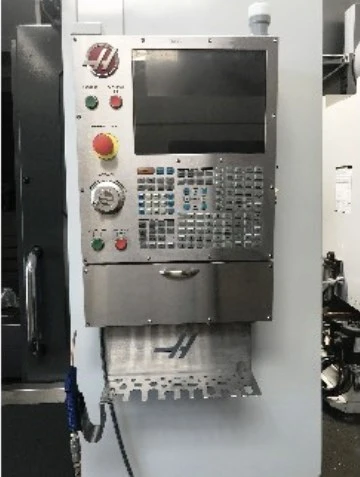

HAAS CNC CONTROL
4TH AXIS READY
BT40 TAPER
PROBE
HIGH SPEED MACHINING
WIFI
PROGRAMMABLE COOLANT
CHIP AUGER
