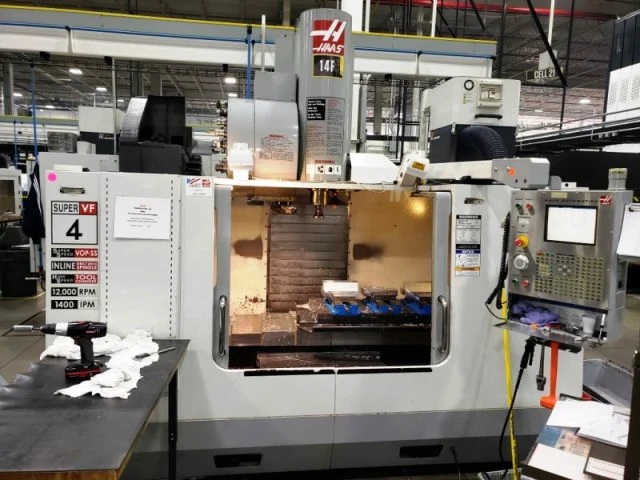

HAAS VF-4SS

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
HAAS
Model:
VF-4SS
Year:
2005
Stock #:
5312
Status:
For Sale

Description

THIS HAAS VF-4SS HAS A 12000 RPM SPINDLE, CAT 40 SPINDLE AND TRAVELS OF 50/ 20/ 25. IT HAS RIGID TAP, FLOATING POINT CO-PROCESSOR, CHIP AUGER AND IS PREPPED FOR A 4TH AXIS.

X Travel50"1,270 mm
Y Travel20"508 mm
Z Travel25"635 mm
Spindle Speed12,000 RPM12000 rpm
Tool Capacity (ATC)2424
Main Spindle Motor30 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top4" - 29"4" - 29"
ControlCNC (HAAS)CNC (HAAS)
Weight15,500 LBS15,500 LBS

HAAS VF-4SS
NEW 2005

SPECIFICATIONS:
X-AXIS TRAVEL           50”
Y-AXIS TRAVEL           20”
Z-AXIS TRAVEL           25”
SPINDLE NOSE TO TABLE   4-29”
SPINDLE MOTOR           30 HP
SPINDLE TAPER           CT 40
SPINDLE SPEED           12,000 RPM
TOOL CHANGER            24+1 SIDE MOUNT
VOLTAGE                 208/230
MACHINE WEIGHT          15,500 LBS

HAAS CNC CONTROL
FLOATING POINT CO-PROCESSOR
HIGH INTENSITY LIGHTING
HIGH SPEED MACHINING
4TH-AXIS READY
RIGID TAPPING
20-POSITION PROGRAMMABLE COOLANT NOZZLE
COORDINATE ROTATION & SCALING
16 MB EXPANDED MEMORY
MACROS
CHIP AUGER
FLOPPY PORT (WE CAN CONVERT TO USB FOR YOU)
RS-232 PORT
REMOTE JOG HANDLE
M19 SPINDLE ORIENTATION P & R CODES
COOLANT PUMP & TANK
LEVELING PADS
MANUAL
(LNS FOX WS700 MIST COLLECTOR PICTURED AVAILABLE FOR SEPARATE SALE
