HAAS VF-6SS/ 5 AXIS
Have one to sell?
ConditionUsed
1 available

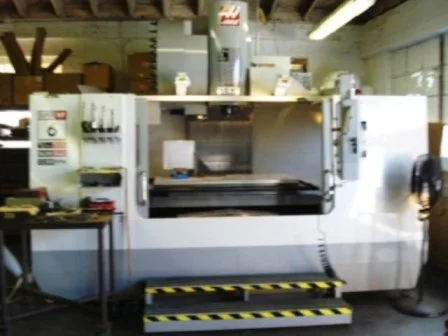

WELL MAINTAINED HAAS VF6SS/5 AXIS VERTICAL MACHINING CENTER INCLUDES A TRT 310 4TH/ 5TH AXIS TRUNION TABLE WITH TRAVELS OF 64 X 32 X 30 AND A 40 POSITION SIDE MOUNTED ATC.
SPECIFICATIONS:
TRAVELS:
X-AXIS TRAVELS 64"
Y-AXIS TRAVELS 32"
Z-AXIS TRAVELS 30"
TABLE WIDTH 28"
TABLE LENGTH 64"
MAX.WEIGHT ON TABLE 2,000 LBS
TAPER CAT 40
SPINDLE 12,000 RPM INLINE DIRECT DRIVE
HORSEPOWER 30 HP
SIDE MOUNTED ATC 40+1
RAPIDS 1200 IPM
DIMENSIONS L:178" X W:139" X H:124"
WEIGHT 24,000 LBS
HAAS CNC CONTROL WITH 14" LCD MONITOR
RIGID TAPPING
RS-232C PORT INTERFACE FOR DNC OPERATION
USB PORT
STANDARD COOLANT SYSTEM WITH TANK & PUMP
HIL - HIGH-INTENSITY LIGHTING; DUAL HALOGEN EXTERNAL LIGHTS W/DOOR SWITCH CLNT-TNK-95G 95-GALLON COOLANT TANK
16 MB MEMORY
VQC
VISUAL QUICK CODE
HOME
HOME BUTTON FOR USER-DEFINED 2ND HOME POSITION
PROGRAMMABLE COOLANT NOZZLE
CC CHIP AUGER
4AXBL 4TH-AXIS DRIVE AND WIRING ONLY
5AXD 5TH-AXIS PRE-WIRE
RJH-E ENHANCED REMOTE JOG HANDLE WITH LCD
SMTC4
AUTOMATIC TOOL CHANGER 40+1 ATC SIDE MOUNT
HAAS TRT 310 4TH/5TH AXIS TRUNION TABLE
HOURS SUBJECT TO CHANGE:
MOTION: 953 HOURS
SPINDLE: 898 HOURS
ALL AVAILABLE MANUALS
*****HAAS TRT-310 4TH/5TH AXIS ROTARY TABLE (WILL SHIP FROM SEPARATE LOCATION)****
