HURCO BMC 4020

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
HURCO
Model:
BMC 4020
Year:
1999
Stock #:
1954
Status:
For Sale
Serial #:
B42S91010128DC

Description

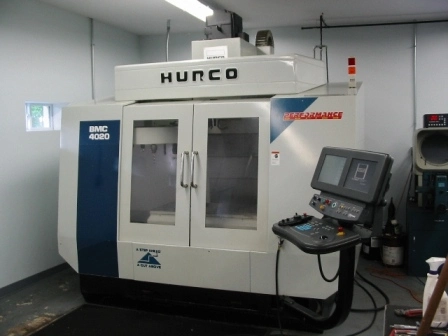

THIS HURCO BMC 4020 VERTICAL HAS ULTIMAX CONTROL WITH 2 MONITORS, RIGID TAP AND A 3D MOLD PACKAGE WITH A CAT 40/ 8000 RPM SPINDLE AND 24 POSITION ATC.

X Travel40"1,016 mm
Y Travel20"508 mm
Z Travel24"609.6 mm
Spindle Speed8,000 RPM8000 rpm
Tool Capacity (ATC)2424
Table Size (W)48"1,219.2 mm
Table Size (L)20"508 mm
Main Spindle Motor20 hp
Spindle TaperCAT 40CAT 40
Spindle Nose To Table Top6" - 30"6" - 30"
ControlCNC (ULTIMAX 4)CNC (ULTIMAX 4)

SPECIFICATIONS:
TABLE SIZE 48" X 20"
TRAVELS; X-AXIS 40"
Y-AXIS 20"
Z-AXIS 24"
SPINDLE NOSE TO TABLE, MAX./MIN 30"/6"
SPINDLE CENTER TO COLUMN WAYS 17.5"
MAXIMUM WORK LOAD 1500 LBS.
SPINDLE TYPE #40
SPINDLE SPEEDS 80 TO 8000 RPM
RAPID TRAVERSE (X & Y) 945 IPM
RAPID TRAVERSE (Z) 590 IPM
NUMBER OF TOOLS 24 ATC
SPINDLE MOTOR 20 HP
APPROX.MACHINE WEIGHT 12,200 -13,000 LBS

ULTIMAX 4 WITH 2 MONITORS
RIGID TAP
ULTI POCKET
ULTI NET
3-D MOLD PACKAGE
DXF OPTION
