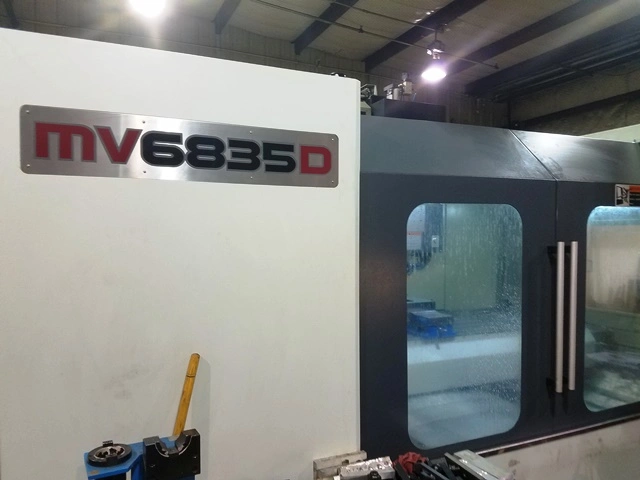

INFINITY MV 6835D VERTICAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
INFINITY
Model:
MV 6835
Year:
2014
Stock #:
5118
Status:
For Sale

Description

THE INFINITY MV 6835D HAS TRAVELS OF 68 X 35 X 30 WITH A CAT 50/ 10000 RPM SPINDLE, COOLANT THRU AND A FANUC CNC CONTROL.

X Travel68"1,727.2 mm
Y Travel35"889 mm
Z Travel30"762 mm
Spindle Speed10,000 RPM10000 rpm
Tool Capacity (ATC)4040
Table Size (W)78"1,981.2 mm
Table Size (L)34.5"876.3 mm
Spindle TaperCAT 50CAT 50
Coolant ThruYesYes
ControlCNC (FANUC 0IMD)CNC (FANUC 0IMD)

SPECIFICATIONS:
TABLE SIZE            78" X 34.5"
X-AXIS TRAVEL         68"
Y-AXIS TRAVEL         35"
Z-AXIS TRAVEL         30"
SPINDLE TAPER         50
SPINDLE SPEED         10000 RPM
TOOL CHANGER POSITION 40

FANUC 0IMD CNC
THROUGH SPINDLE COOLANT
THROUGH SPINDLE AIR BLAST
RIGID TAPPING
LOOK AHEAD FUNCTION
SPINDLE AIR PURGE
SPINDLE AIR BLOW
COOLANT TANK AND PUMP
HALOGEN WORK LIGHT
COOLANT NOZZLES IN SPINDLEHEAD
REMOTE MPG
FULL ENCLOSURE GUARD
Mfg.: 2014
Installed: 7/6/17
