2011 JOHNFORD DMC 3100SH HIGH NET CNC DOUBLE COLUMN BRIDGE MILL
Have one to sell?
ConditionUsed
1 available

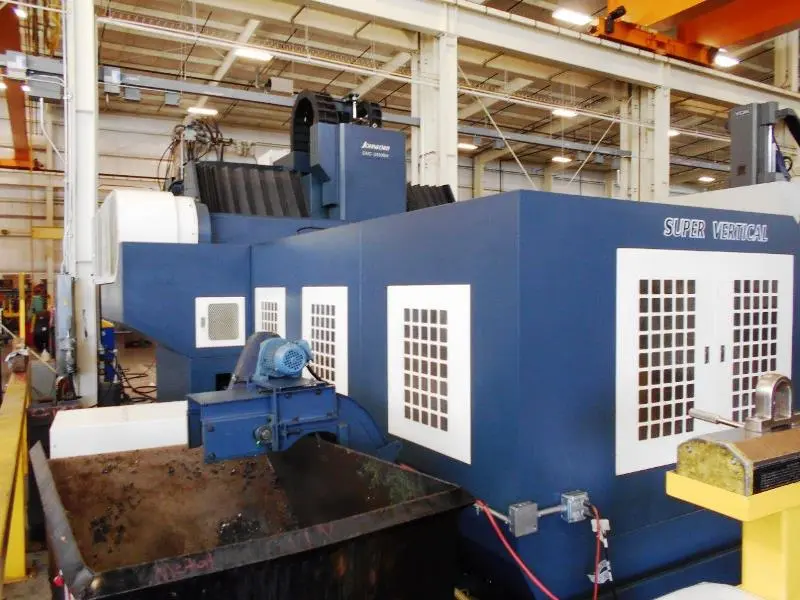

THE JOHNFORD DMC 3100SH HIGH NET CNC DOUBLE COLUMN BRIDGE MILL HAS LONG TRAVELS OF 120" X 70" X 32", A HEAVY DUTY CAT 50/ 8000 RPM SPINDLE, 40 TOOLS, BOX WAYS, 1000 PSI COOLANT THRU AND A FANUC 31i CNC CONTROL.
SPECIFICATIONS:
NUMBER OF AXIS 3
TABLE SIZE 59" X 126"
TABLE CAPACITY 22,000 LBS
X-AXIS TRAVEL 120"
Y-AXIS TRAVEL 70"
Z-AXIS TRAVEL 32"
DISTANCE BETWEEN COLUMNS 70.7"
RAPID FEEDRATE-X,Y/ Z 472 IPM
SPINDLE SPEED 8,000 RPM
SPINDLE TAPER CAT 50
MAIN MOTOR 35 HORSEPOWER
TOOL CHANGER CAPACITY 40
MACHINE DIMENSIONS 378" X 157" X 149"H
MACHINE WEIGHT 75,000 LBS
FANUC 31I CNC CONTROL
DATA SERVER
MANUAL GUIDE I (CONVERSATIONAL PROGRAMMING)
BOX WAYS
CHIP CONVEYOR
HIGH PRESSURE (1,000 PSI) COOLANT THRU SPINDLE
2 SPEED GEAR BOX
THE JOHNFORD DMC 3100SH HIGH NET CNC DOUBLE COLUMN BRIDGE MILL HAS LONG TRAVELS OF 120" X 70" X 32", A HEAVY DUTY CAT 50/ 8000 RPM SPINDLE, 40 TOOLS, BOX WAYS, 1000 PSI COOLANT THRU AND A FANUC 31i CNC CONTROL.
Imperial
| X Travel | 120" |
| Y Travel | 70" |
| Z Travel | 32" |
| Spindle Speed | 8000 rpm |
| Tool Capacity (ATC) | 40 |
| Table Size (W) | 126" |
| Table Size (L) | 59" |
| Main Spindle Motor | 35 hp |
| Spindle Taper | CAT 50 |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 1000 psi |
| Control | CNC (FANUC 31i) |
| Dimensions | 378" X 157" X 149" |
| Weight | 75,000 LBS |
SPECIFICATIONS:
NUMBER OF AXIS 3
TABLE SIZE 59" X 126"
TABLE CAPACITY 22,000 LBS
X-AXIS TRAVEL 120"
Y-AXIS TRAVEL 70"
Z-AXIS TRAVEL 32"
DISTANCE BETWEEN COLUMNS 70.7"
RAPID FEEDRATE-X,Y/ Z 472 IPM
SPINDLE SPEED 8,000 RPM
SPINDLE TAPER CAT 50
MAIN MOTOR 35 HORSEPOWER
TOOL CHANGER CAPACITY 40
MACHINE DIMENSIONS 378" X 157" X 149"H
MACHINE WEIGHT 75,000 LBS
FANUC 31I CNC CONTROL
DATA SERVER
MANUAL GUIDE I (CONVERSATIONAL PROGRAMMING)
BOX WAYS
CHIP CONVEYOR
HIGH PRESSURE (1,000 PSI) COOLANT THRU SPINDLE
2 SPEED GEAR BOX
