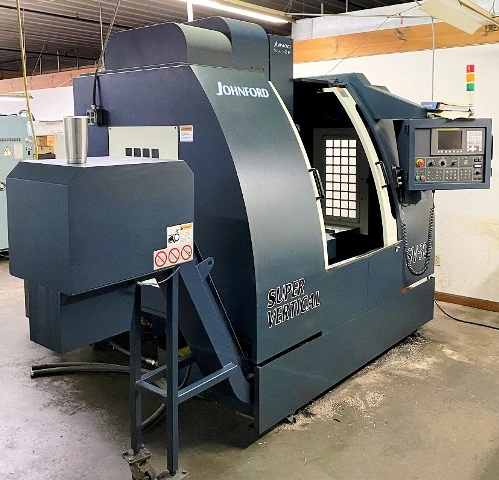

JOHNFORD SV-32P 3-AXIS CNC VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THIS JOHNFORD SV-32P 3-AXIS CNC VERTICAL MACHINING CENTER TRAVELS 31" X 19" X 24" WITH A CAT 40/ 10000 RPM SPINDLE, 24 TOOL ATC AND FANUC CONTROL.
SPECIFICATIONS:
X-AXIS 31.5"
Y-AXIS 19.7"
Z-AXIS 24"
SPINDLE SPEED 10,000 RPM
SPINDLE TAPER 40
TOOLS 24
TABLE LOAD CAPACITY 880 LBS.
SPINDLE NOSE TO TABLE TOP 3.94" TO 28"
RAPID TRAVERSE RATES (X & Y / Z) 181 / 787 IPM
MAX TOOL DIAMETER 4"
MAX TOOL LENGTH 12"
MAX TOOL WEIGHT 22 LBS.
MACHINE DIMENSIONS (L X W X H) 92.5" X 126" X 106.2"
MACHINE WEIGHT 12,100 LBS.
FANUC SERIES 0I-MC CNC CONTROL
7.2" COLOR LCD
24 POSITION SIDE MOUNT TOOL CHANGER
SPINDLE CHILLER UNIT
SPINDLE AIR BLAST
HALOGEN WORK LAMP
REMOTE JOG HANDLE
CHIP CONV
THREE COLOR TOWER LIGHT
