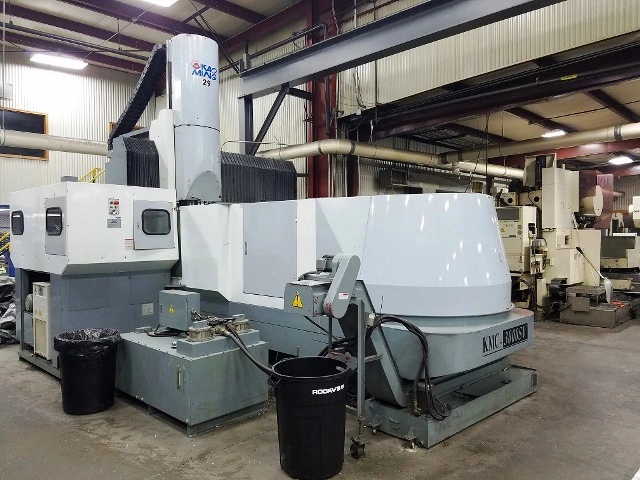

KAO MING KMC 3000SV VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
LOOKING FOR A LARGE VERTICAL, THE KAO MING KMC 3000SV HAS AN X AXIS TRAVEL OF 127", A CAT 50/ 8000 RPMS SPINDLE WITH COOLANT THRU, 30 TOOLS AND FANUC CNC CONTROL. INCLUDES LOTS OF TOOLING.
SPECIFICATIONS:
TABLE WORKING SURFACE 49.21" x 118"
TABLE LOAD CAPACITY 15,400 LBS.
LONGITUDINAL TRAVEL (X-AXIS) 127.16"
CROSS TRAVEL (Y-AXIS) 63.11"
VERTICAL TRAVEL (Z-AXIS) 33.46"
DISTANCE BETWEEN COLUMNS 66.60"
DISTANCE NOSE TO TABLE TOP 7.87" - 41.34"
CUTTING FEED RATES, ALL AXES 196 IPM
RAPID TRAVERSE, ALL AXES 472 IPM
TOOL STORAGE CAPACITY 30 TOOLS
SPINDLE HORSEPOWER 35 HP
SPINDLE SPEEDS RANGE 8000 RPM / 2 SPEED GEAR BOX
SPINDLE TAPER CAT-50
OVERALL DIMENSIONS 320" x 185" x 167"
APPROXIMATE WEIGHT - NET 47,960 LBS.
FANUC 18M CONTROL
8000 RPM SPINDLE
COOLANT THRU SPINDLE
CAT 50
GEARBOX - GEAR CHANGFE AT 3000 RPM
CHIP CONVEYOR
APPROX 75 TOOLHOLDERS
LOOKING FOR A LARGE VERTICAL, THE KAO MING KMC 3000SV HAS AN X AXIS TRAVEL OF 127", A CAT 50/ 8000 RPMS SPINDLE WITH COOLANT THRU, 30 TOOLS AND FANUC CNC CONTROL. INCLUDES LOTS OF TOOLING.
Imperial
| X Travel | 127.16" |
| Y Travel | 63.11" |
| Z Travel | 33.46" |
| Spindle Speed | 8000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 118" |
| Table Size (L) | 49.21" |
| Main Spindle Motor | 35 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 7.87" - 41.34" |
| Coolant Thru | Yes |
| Control | CNC (FANUC 18M) |
| Dimensions | 320" x 185" x 167" |
| Weight | 47,960 LBS |
SPECIFICATIONS:
TABLE WORKING SURFACE 49.21" x 118"
TABLE LOAD CAPACITY 15,400 LBS.
LONGITUDINAL TRAVEL (X-AXIS) 127.16"
CROSS TRAVEL (Y-AXIS) 63.11"
VERTICAL TRAVEL (Z-AXIS) 33.46"
DISTANCE BETWEEN COLUMNS 66.60"
DISTANCE NOSE TO TABLE TOP 7.87" - 41.34"
CUTTING FEED RATES, ALL AXES 196 IPM
RAPID TRAVERSE, ALL AXES 472 IPM
TOOL STORAGE CAPACITY 30 TOOLS
SPINDLE HORSEPOWER 35 HP
SPINDLE SPEEDS RANGE 8000 RPM / 2 SPEED GEAR BOX
SPINDLE TAPER CAT-50
OVERALL DIMENSIONS 320" x 185" x 167"
APPROXIMATE WEIGHT - NET 47,960 LBS.
FANUC 18M CONTROL
8000 RPM SPINDLE
COOLANT THRU SPINDLE
CAT 50
GEARBOX - GEAR CHANGFE AT 3000 RPM
CHIP CONVEYOR
APPROX 75 TOOLHOLDERS
