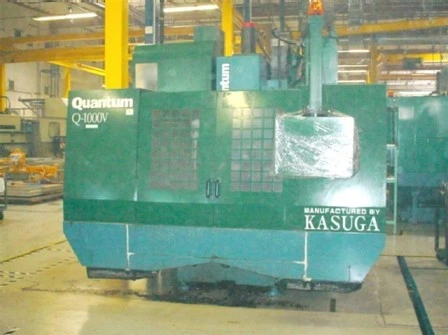

KASUGA QUANTUM Q1000 - V
Have one to sell?
ConditionUsed
1 available
THIS KASUGA QUANTUM Q1000 - V IS A CAT 50/ 6000 RPM VERTICAL WITH 40" IN X, 30 STATION ATC, RIGID TAP AND A FANUC CONTROL.
SPECIFICATIONS:
TABLE SIZE 55" x 23.6"
TABLE LOAD, MAX. 2200 LBS
TABLE TOP TO SPINDLE END 6.3" - 31.9"
X AXIS TRAVEL 42"
Y AXIS TRAVEL 24"
Z AXIS TRAVEL 25.6"
RAPID TRAVERSE RATE X, Y AXES 787 IPM
RAPID TRAVERSE Z AXIS 590 IPM
CUTTING FEED RATE 0.1 - 393 IPM
SPINDLE TAPER CAT 50
SPINDLE SPEEDS (2 SPEED GEARED) 50 - 6000 RPM
SPINDLE MOTOR 25 HP
TOOL CHANGER CAPACITY 30 STATION ATC (SIDE-MOUNT)
MAXIMUM TOOL WEIGHT 33 LBS
MACHINE WEIGHT, APPROX. 19,000 LBS
FANUC 18i-M CNC CONTROL WITH CRT
RS-232C PORT INTERFACED FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING)
TURBO CHIP CONVEYOR, SWING-ARM SIDE-MOUNT ATC
25 HP GEARBOX SPINDLE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING
ALL AVAILABLE MANUALS
