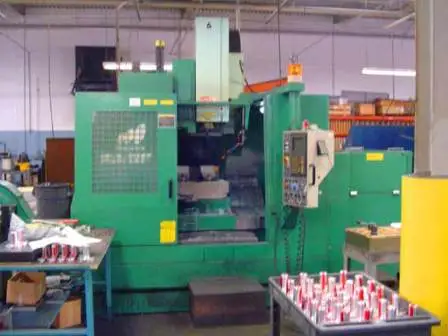

MATSUURA RA-IV F CNC VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THE MATSUURA RA-IV F CNC VERTICAL MACHINING CENTER HAS A BT 40/ 15000 RPM SPINDLE WITH 213 PSI COOLANT THRU AND 2 PALLET CHANGER.
SPECIFICATIONS:
NUMBER OF PALLETS 2
TABLE SIZE 19.3" X 39.47"
TABLE TRAVEL X - AXIS 40.15"
Y - AXIS 21.65"
Z - AXIS 20.08"
RAPID TRAVERSE RATES 1181 X,Y, IPM
797 Z, IPM
CUTTING FEED RATES .1 - 797.7 IPM
SPINDLE NOSE BT# 40
SPINDLE SPEED 15,000 RPM
TOOL MAGAZINE 30 ATC
TOOL CHANGE TIME 1.8 SEC.
MAIN MOTOR 30 HP AC
YASNAC I 80MB CNC CONTROL
HANDYMAN SOFTWARE
MACRO SOFTWARE
HIGH PRESSURE 213 COOLANT THRU THE SPINDLE
REMOTE PULSE GENERATOR
FACTORY 2 PALLET AUTOMATIC CHANGER
SPINDLE CHILLER
FULL ENCLOSURE
CHIP CONVEYOR
ALL AVAILABLE MANUALS
THE MATSUURA RA-IV F CNC VERTICAL MACHINING CENTER HAS A BT 40/ 15000 RPM SPINDLE WITH 213 PSI COOLANT THRU AND 2 PALLET CHANGER.
Imperial
| X Travel | 40.15" |
| Y Travel | 21.65" |
| Z Travel | 20.08" |
| Spindle Speed | 15000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 39.47" |
| Table Size (L) | 19.3" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | BT 40 |
| Spindle Nose To Table Top | 5.9” - 25.98” |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 213 psi |
| Control | CNC (YASNAC I 80MB) |
SPECIFICATIONS:
NUMBER OF PALLETS 2
TABLE SIZE 19.3" X 39.47"
TABLE TRAVEL X - AXIS 40.15"
Y - AXIS 21.65"
Z - AXIS 20.08"
RAPID TRAVERSE RATES 1181 X,Y, IPM
797 Z, IPM
CUTTING FEED RATES .1 - 797.7 IPM
SPINDLE NOSE BT# 40
SPINDLE SPEED 15,000 RPM
TOOL MAGAZINE 30 ATC
TOOL CHANGE TIME 1.8 SEC.
MAIN MOTOR 30 HP AC
YASNAC I 80MB CNC CONTROL
HANDYMAN SOFTWARE
MACRO SOFTWARE
HIGH PRESSURE 213 COOLANT THRU THE SPINDLE
REMOTE PULSE GENERATOR
FACTORY 2 PALLET AUTOMATIC CHANGER
SPINDLE CHILLER
FULL ENCLOSURE
CHIP CONVEYOR
ALL AVAILABLE MANUALS
