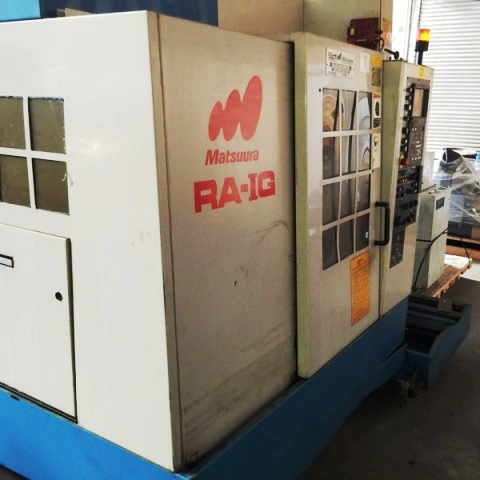

MATSUURA RA-1G - 2 PALLET VERTICAL MACHINING CENTER

SPECIFICATIONS:
Y AXIS TRAVEL:                    15.7”
X AXIS TRAVEL:                    20”
Z AXIS TRAVEL:                    18.1”
TABLE SIZE:                       14.9" - 24.9"
MAX LOAD ON TABLE :               880 LBS
T SLOT :                          11/16" X 3 X 5
PALLET WORKING SURFACE:           23.6" - 14.9"
PALLET LOADING CAPACITY:          550 LBS
RAPID TRAVERSE X/Y/Z:             1181"/1181"/944"/MIN
DIMENSIONS LXWXH:                 126"X102"X100
MAX. SPINDLE SPEED:               15,000 RPM
SPINDLE TAPER:                    BT-40
NUMBER OF TOOLS:                  30
POWER:                            240 V
