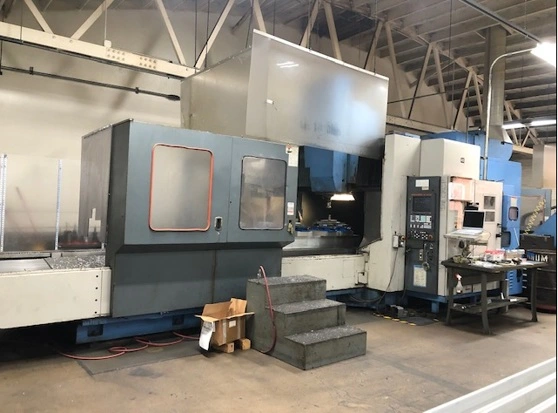

MAZAK AJV 60/ 120
Have one to sell?
ConditionUsed
1 available
THIS AJV 60/160 HAS TRAVELS OF 165 X 55 X 20, A CAT 50/ 10000 RPM SPINDLE AND 30 STATION ATC.
DISTANCE BETWEEN COLUMNS 59"
TABLE SIZE 49.2" X 118.1"
TABLE LOADING CAPACITY 5000 KG
STROKE X 126"
Y 55.1"
Z 20"
DISTANCE FROM SPINDLE NOSE TO TABLE 17.7" - 37.7"
SPINDLE SPEED 22 5,000 RPM
TOOL MAGAZINE CAPACITY 40 TOOLS
TOOL SHANK CAT-50
MAIN MOTOR AC 26/22 KW
MAZATROL M PLUS CNC CONTROL
AUTO TOOL LENGTH MEASURING
THIS AJV 60/160 HAS TRAVELS OF 165 X 55 X 20, A CAT 50/ 10000 RPM SPINDLE AND 30 STATION ATC.
Imperial
| X Travel | 165.98" |
| Y Travel | 55.12" |
| Z Travel | 20" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 158.11" |
| Table Size (L) | 49.52" |
| Main Spindle Motor | 35 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 17.7" - 37.7" |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (MAZATROL M-PLUS) |
| Weight | 65,200 LBS |
DISTANCE BETWEEN COLUMNS 59"
TABLE SIZE 49.2" X 118.1"
TABLE LOADING CAPACITY 5000 KG
STROKE X 126"
Y 55.1"
Z 20"
DISTANCE FROM SPINDLE NOSE TO TABLE 17.7" - 37.7"
SPINDLE SPEED 22 5,000 RPM
TOOL MAGAZINE CAPACITY 40 TOOLS
TOOL SHANK CAT-50
MAIN MOTOR AC 26/22 KW
MAZATROL M PLUS CNC CONTROL
AUTO TOOL LENGTH MEASURING
