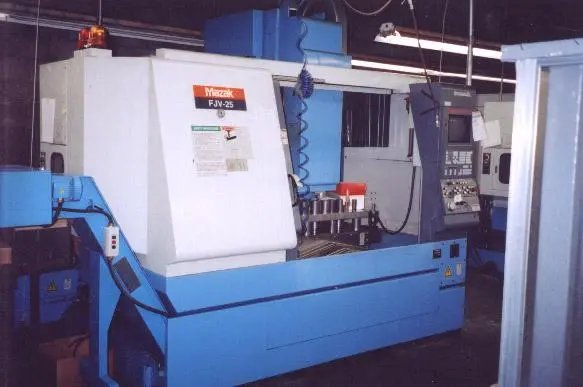

MAZAK FJV 25
Have one to sell?
ConditionUsed
1 available
THE FJV 25 HAS TRAVELS OF 40 X 20 X 18, A CAT 40/ 12000 RPM SPINDLE, RIGID TAP, ATLM AND A CHIP CONVEYOR.
SPECIFICATIONS:
TABLE SIZE 47.24" X 21.65"
MAX. WORKPIECE LOAD 1760 LBS.
TABLE TRAVEL X - AXIS 40.15"
Y - AXIS 20.07"
Z - AXIS 18.11"
DISTANCE FROM SPINDLE NOSE TO TABLE TOP 7.87"- 25.98"
RAPID TRAVERSE RATES 1180 X,Y, IPM
708 Z, IPM
CUTTING FEED RATES 350 IPM
SPINDLE NOSE CAT #40
SPINDLE SPEED 12,000 RPM
TOOL MAGAZINE 30 ATC
MAX TOOL DIA. 3.14"/4.92"
MAX TOOL LENGTH 11.81"
MAX TOOL WEIGHT 17.6"
MAIN MOTOR 30/15 HP AC
MACHINE WEIGHT 13,228 LBS.
MAZATROL M-PLUS CNC CONVERSATIONAL CONTROL
RIGID TAPPING
AUTO TOOL LENGTH MEASUREMENT SYSTEM
2D HIGH SPEED MACHINING SOFTWARE
MMSB (PREP)
CHIP CONVEYOR
AUTO POWER ON/OFF
ALL MANUALS
