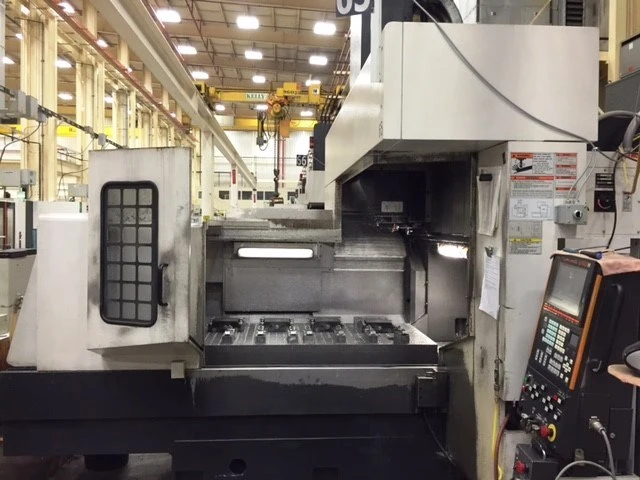

MAZAK FJV 35/60

SPECIFICATIONS:
X AXIS TRAVELS                   59"
Y AXIS TRAVELS                   31.5"
Z AXIS TRAVELS                   23"
TABLE SIZE                       68.5" X 29.5"
MAXIMUM WORKPEICE WEIGHT         5,500 LBS
DISTANCE BETWEEN COLUMNS         34.65"
DISTANCE FROM SPINDLE NOSE
            TO TABLE TOP         6.3" - 32.8"
RAPID TRAVERSE (X/Y,Z)           1,260/708 IPM
CUTTING FEEDRATE (X,Y,Z)         708 IPM
SPINDLE TAPER                    #50
SPINDLE SPEED                    10,000 RPM
TOOL CAPACITY                    60 ATC
MAXIMUM TOOL LENGTH              19.90"
MAXIMUM TOOL DIAMETER/WITH
     ADJ. POCKETS EMPTY          4.92/8.27"
MAXIMUM TOOL WEIGHT              44 LBS
TOOL CHANGE TIME                 2.1 SECONDS
CHIP TO CHIP TIME                7.5 SECONDS
WEIGHT                           28,830 LBS
