MAZAK FJV 35/80
Have one to sell?
ConditionUsed
1 available
THIS FJV 35/ 80 IS A BRIDGE TYPE VERTICAL WTH A CAT 50/ 15000 RPM HIGH TORQUE SPINDLE WITH COOLANT THRU SPINDLE AND FUSION 640 CONTROL.
SPECIFICATIONS:
TABLE SIZE 32.52" X 98.32"
TABLE TRAVEL X - AXIS 79.74"
Y - AXIS 31.49"
Z - AXIS 23"
DISTANCE FROM SPINDLE NOSE TO TABLE TOP 7.8" - 30.9"
DISTANCE BETWEEN COLUMNS 34.65"
TABLE LOAD CAPACITY 6510 LBS.
RAPID TRAVERSE RATES 1260 X,Y, IPM
708 Z, IPM
CUTTING FEED RATES 708 IPM
SPINDLE NOSE #50 TAPER
SPINDLE SPEED 15,000 RPM
TOOL MAGAZINE 60 ATC
MAX TOOL DIA. WHEN ADJACENT EMPTY 8.27"
MAX TOOL LENGTH 19.96"
MAIN MOTOR 50 HP
MACHINE WEIGHT 36,880 LBS.

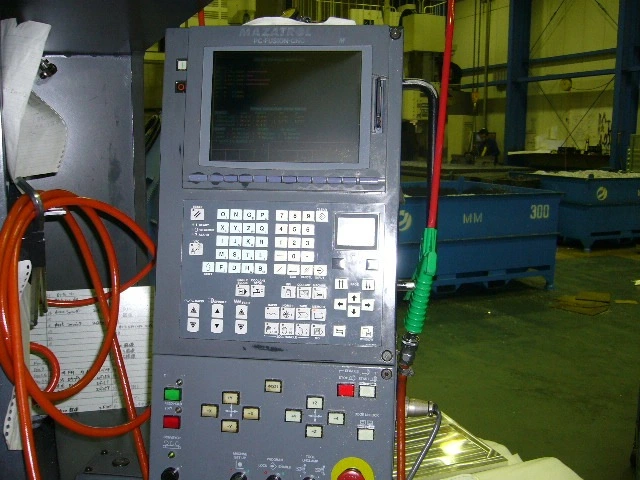

MAZATROL FUSION 640M COLOR CONVERSATIONAL CONTROL
EIA /ISO
COOLANT THRU THE SPINDLE
15,000 RPM 50 HP AC SPINDLE (HIGH TORQUE)
AUTOMATIC TOOL LENGTH MEASUREMENT
SYNCHRONIZED TAPPING
NAVIGATION
CHIP CONVEYOR
TOOL BREAKAGE DETECTION
FULL ENCLOSURE COVERS WITH TOP COVER
ALL AVAILABLE MANUALS
