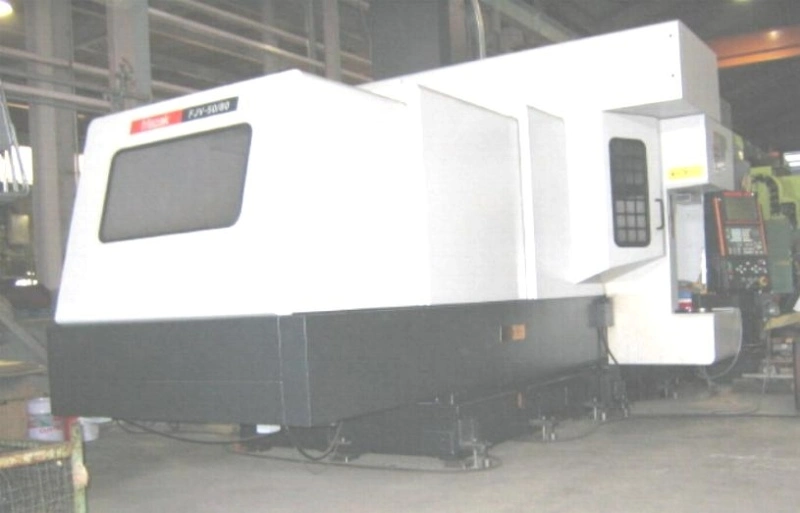

MAZAK FJV 50/80
Have one to sell?
ConditionUsed
1 available
THE FJV 50/80 BRIDGE STYLE VERTICAL HAS FUSION 640M CONTROL, TRAVELS OF 80 X 45 X 23 WITH A CAT 50/ 6000 RPM SPINDLE.
SPECIFICATIONS:
TABLE SIZE 39.25" X 88.32"
TABLE TRAVEL X - AXIS 80.98"
Y - AXIS 45.12"
Z - AXIS 23"
DISTANCE FROM SPINDLE NOSE TO TABLE TOP 7.97" - 30.91"
DISTANCE BETWEEN COLUMNS 48.27"
TABLE LOAD CAPACITY 11,000 LBS.
RAPID TRAVERSE RATES 945,1260 X,Y, IPM
709 Z, IPM
CUTTING FEED RATES 709 IPM
SPINDLE NOSE #50 TAPER
SPINDLE SPEED 6,000 RPM
SPEED RANGES 2
TOOL MAGAZINE 30 ATC
MAX TOOL DIA. WHEN ADJACENT EMPTY 8.27"
MAX TOOL LENGTH 19.96"
MAIN MOTOR 35 HP
MACHINE WEIGHT 39,880 LBS.
MAZATROL FUSION 640M PRO CNC CONTROL
SPIRAL
CYBERTECH CNC PACKAGE
COOLANT THRU THE SPINDLE (PREP)
HELICAL INTERPOLATION
SYNCHRONIZED TAPPING
AUTOMATIC TOOL LENGTH MEASUREMENT
TOOL LIFE MONITORING
CHIP CONVEYOR
TOOL BREAKAGE DETECTION
FULL ENCLOSURE
ALL AVAILABLE MANUALS
