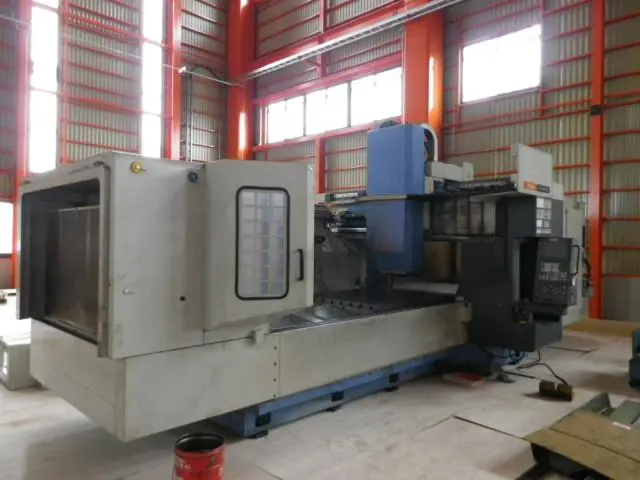

MAZAK FJV 60/120

SPECIFICATIONS:
TABLE SIZE                            49.2"X 118.1"
X-AXIS TRAVELS                        125.98"
Y-AXIS TRAVELS                        55.12"
Z-AXIS TRAVELS                        23"
DISTANCE FROM SPINDLE
          NOSE-TO-TABLE TOP           7.87" - 30.91"
DISTANCE BETWEEN COLUMNS              58.27"
MAXIMUM TABLE LOAD CAPACITY           11,000 LBS
MAXIMUM WORKPIECE SIZE (L/W/H)        118.1"/58.27"/25.2"
SPINDLE TAPER                         50#
SPINDLE HORSEPOWER(CONT/30 MIN)       40 HP
SPINDLE SPEED                         10,000 RPM
NUMBER OF SPEEDS                      1 RPM INCREMENTS
NUMBER OF RANGES                      1
TOOL CLAMPING FORCE                   3,960 LBS.
SPINDLE BEARINGS FRONT (TYPE)         ANG. CONTACT BALL
SPINDLE BEARINGS REAR (TYPE)          SINGLE ROW
SPINDLE COOLING SYSTEM                CHILLER UNIT
ATC MAGAZINE CAPACITY                 60
CHIP-TO-CHIP TOOL CHANGE TIME         9.8 SECONDS (APPROX)
METHOD OF TOOL SELECTION              RANDOM
MAX.TOOL DIA.W/ALL POCKETS FULL       4.92" DIA.
MAX.TOOL DIA.W/ADJACENT
              POCKETS EMPTY           8.27" DIA.
MAX.TOOL LENGTH
           (SHANK+RETENTION STUD)     19.96"
MAXIMUM TOOL WEIGHT                   44 LBS
TYPE OF SERVO DRIVES                  DIGITAL AC
RAPID TRAVERSE RATE (X&Y AXIS)        945 /1260 IPM
RAPID TRAVERSE RATE (Z-AXIS)          709 IPM
MAX. PROGRAMMABLE FEEDRATE(X&Y AXIS)  709 IPM
MAX. PROGRAMMABLE FEEDRATE(Z-AXIS)    709 IPM
FLOOR SPACE (W X L) (WITH 30 TOOLS)   150.67"X 318.9"
MACHINE HEIGHT (WITH STANDARD COLUMN) 138.8"
TOTAL POWER REQUIRED (MACHINE ONLY)   59 KVA
     NOTE: ACTUAL MACHINE MAIN TRANSFORMER
           KVA RATING WILL BE GREATER
MACHINE WEIGHT                        59,400 LBS.
